SPR-39MVWF
LED GREEN/RED DIFFUSED T-1 T/HManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More

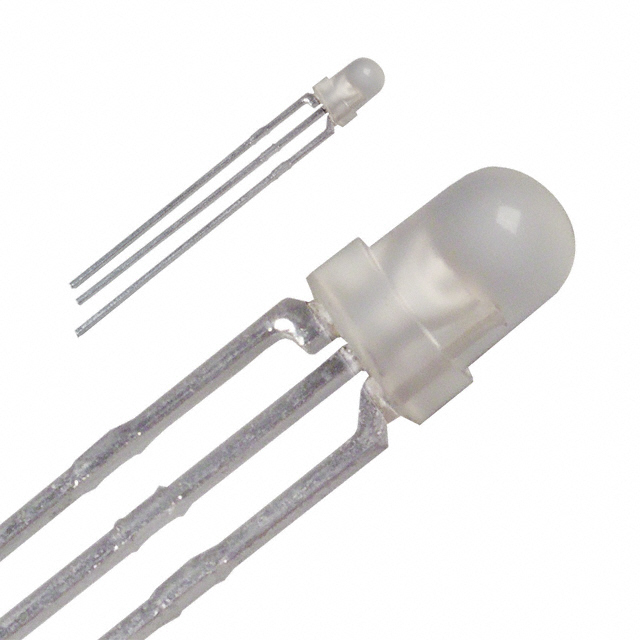

Rohm Semiconductor SPR-39MVWF is a through-hole, T-1 package discrete LED with a diffused, round, domed top lens. This bi-color component features a common cathode configuration, emitting a 563nm dominant wavelength green light with a typical forward voltage of 2.1V and a millicandela rating of 10mcd, and a 650nm dominant wavelength red light with a typical forward voltage of 2V and a millicandela rating of 6.3mcd, both tested at 10mA. The viewing angle is 35 degrees. This component is suitable for various indication applications in the industrial, automotive, and consumer electronics sectors. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial - 3 Leads |
| Color | Green, Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd Green, 6.3mcd Red |
| Configuration | Common Cathode |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Red |
| Lens Color | White |
| Current - Test | 10mA Green, 10mA Red |
| Viewing Angle | 35° |
| Height (Max) | 5.20mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 563nm Green, 650nm Red |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.10mm Dia |
