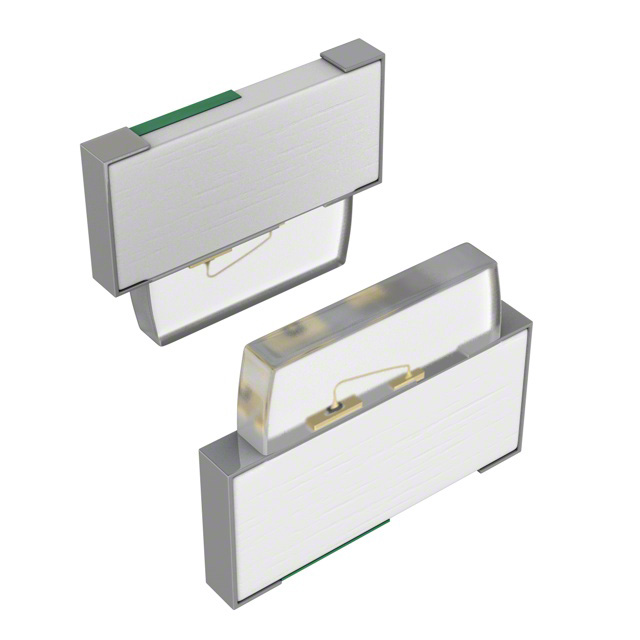

SMLR13WBDW3
LED WHITE DIFFUSED 16115 SMD R/AManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More
Rohm Semiconductor PicoLED™ SMLR13WBDW3 is a white diffused, surface-mount, right-angle LED with a standard configuration. This discrete indicator component operates at a typical forward voltage of 3V and has a test current of 5mA, delivering 110mcd of luminous intensity. The LED features a 1.60mm x 1.15mm dimension and a height of 0.25mm, housed in a 16115 (0604) package. Its diffused lens style, a rectangle with a flat top, measures 1.20mm x 0.20mm. This component is commonly utilized in industrial automation, automotive lighting, and consumer electronics for status indication. The SMLR13WBDW3 is supplied on tape and reel for efficient automated assembly.
Additional Information
Series: PicoLED™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Color | White |
| Size / Dimension | 1.60mm L x 1.15mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 110mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3V |
| Lens Color | White |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 0.25mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 16115(0604) |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.20mm |
