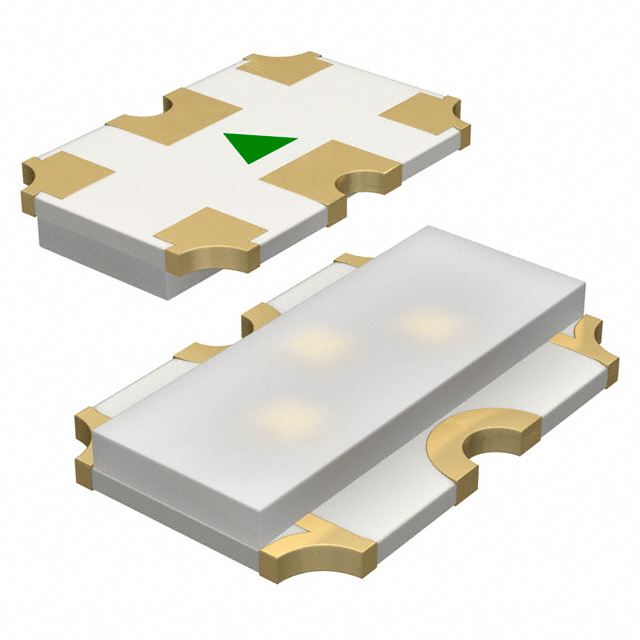

SMLP36RGB2W3R
LED RGB DIFFUSED PICOLED SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More
Rohm Semiconductor PicoLED™ SMLP36RGB2W3R is a surface-mount, RGB LED indication component. This discrete LED features independent Red, Green, and Blue emitters with dominant wavelengths of 624nm, 527nm, and 470nm respectively. Forward voltage characteristics are 2.1V for Red, 3.1V for Green, and 3V for Blue at a typical test current of 5mA for each color. The component is housed in a 0604 (1510 Metric) package with dimensions of 1.50mm L x 1.00mm W and a maximum height of 0.25mm. The diffused lens, measuring 1.50mm x 0.60mm with a flat top, provides a diffused light output. Millicandela ratings are 35mcd for Red, 110mcd for Green, and 35mcd for Blue. This component is suitable for applications in consumer electronics, industrial automation, and automotive systems requiring compact, multi-color visual feedback. Packaging is provided on Tape & Reel (TR).
Additional Information
Series: PicoLED™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0604 (1510 Metric) |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 1.50mm L x 1.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 35mcd Red, 110mcd Green, 35mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.1V Green, 3V Blue |
| Lens Color | White |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | - |
| Height (Max) | 0.25mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 624nm Red, 527nm Green, 470nm Blue |
| Supplier Device Package | PICOLED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.50mm x 0.60mm |
