SMLP36RGB2W3
LED RGB DIFFUSED 1510 SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More

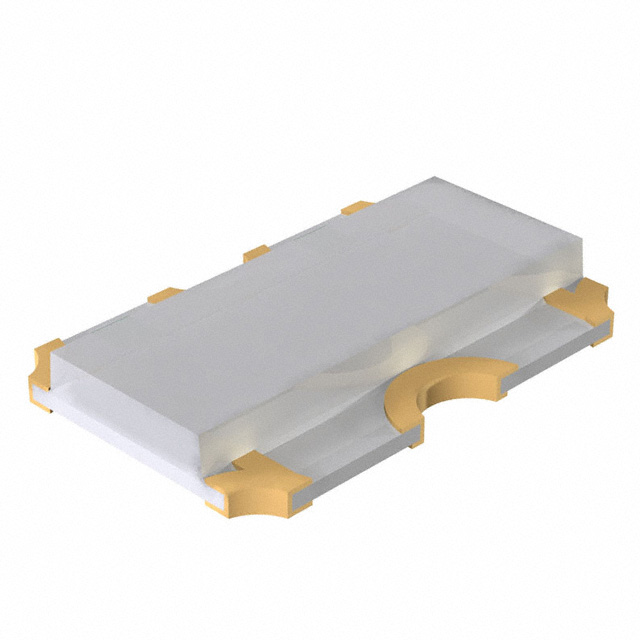

The Rohm Semiconductor PicoLED™ SMLP36RGB2W3 is a surface-mount RGB LED in a compact 1510 (0604 Metric) package. This diffused, rectangular LED offers independent control of Red (624nm dominant wavelength), Green (527nm dominant wavelength), and Blue (470nm dominant wavelength) emitters. At a typical forward current of 5mA for each color, it provides luminous intensity ratings of 35mcd for Red, 110mcd for Green, and 35mcd for Blue. The forward voltage characteristics are 2.1V (Red), 3.1V (Green), and 3V (Blue). Its small footprint and diffused lens make it suitable for various indication applications across industrial, automotive, and consumer electronics sectors. The component is supplied on tape and reel (TR).
Additional Information
Series: PicoLED™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0604 (1510 Metric) |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 1.50mm L x 1.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 35mcd Red, 110mcd Green, 35mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.1V Green, 3V Blue |
| Lens Color | White |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | - |
| Height (Max) | 0.25mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 624nm Red, 527nm Green, 470nm Blue |
| Supplier Device Package | 1510(0604) |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.50mm x 0.60mm |
