SMLP13WBC8W1
LED WHITE 1006 SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More

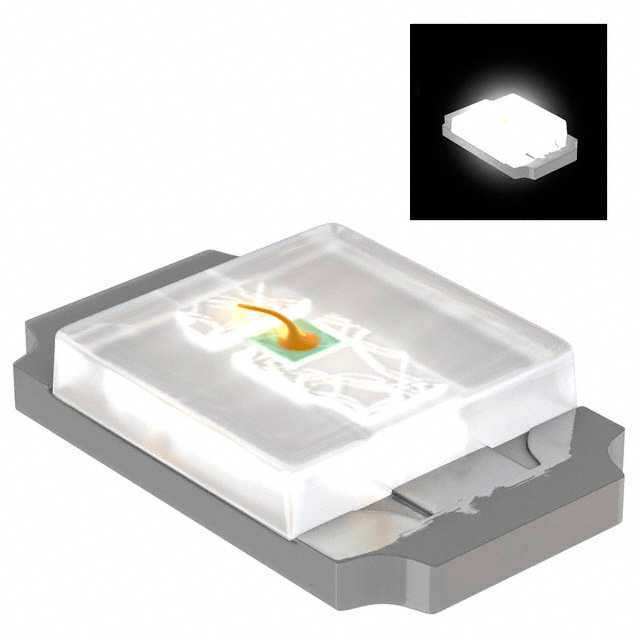

Rohm Semiconductor PicoLED™ SMLP13WBC8W1 is a white LED in a 1006 (0402 Metric) SMD package. This discrete indicator component features a standard configuration with a forward voltage of 2.9V at a test current of 5mA, producing a typical luminous intensity of 180mcd. The compact dimensions of 1.00mm L x 0.60mm W, with a maximum height of 0.25mm, and a 0.60mm square lens with a flat top, make it suitable for space-constrained applications. Supplied on tape and reel (TR), this LED is commonly utilized in consumer electronics, automotive lighting, and industrial control systems.
Additional Information
Series: PicoLED™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) |
| Color | White |
| Size / Dimension | 1.00mm L x 0.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 180mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Lens Color | - |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 0.25mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 1006 (0402) |
| Lens Transparency | - |
| Lens Style | Square with Flat Top |
| Lens Size | 0.60mm |
