SMLP12HBC7W1AWQ
LED PINK DIFFUSED 1006 SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More

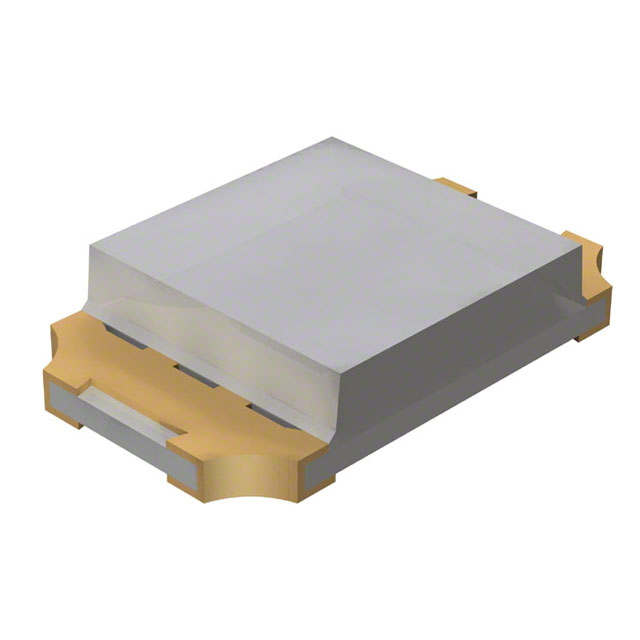

Rohm Semiconductor PicoLED™ SMLP12HBC7W1AWQ is a pink, diffused 0402 (1005 Metric) SMD LED designed for discrete indication. This component features a forward voltage (Vf) of 2.9V and a typical millicandela rating of 22mcd at a test current of 5mA. The LED is housed in a 1006 (0402) package with a white lens and a square, flat-top design measuring 0.60mm. Its dimensions are 1.00mm L x 0.60mm W x 0.25mm H (Max). The SMLP12HBC7W1AWQ is supplied on tape and reel (TR). This component is commonly utilized in industrial automation, consumer electronics, and medical devices for visual status indication.
Additional Information
Series: PicoLED™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) |
| Color | Pink |
| Size / Dimension | 1.00mm L x 0.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 22mcd |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Lens Color | White |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 0.25mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 1006 (0402) |
| Lens Transparency | Diffused |
| Lens Style | Square with Flat Top |
| Lens Size | 0.60mm |
