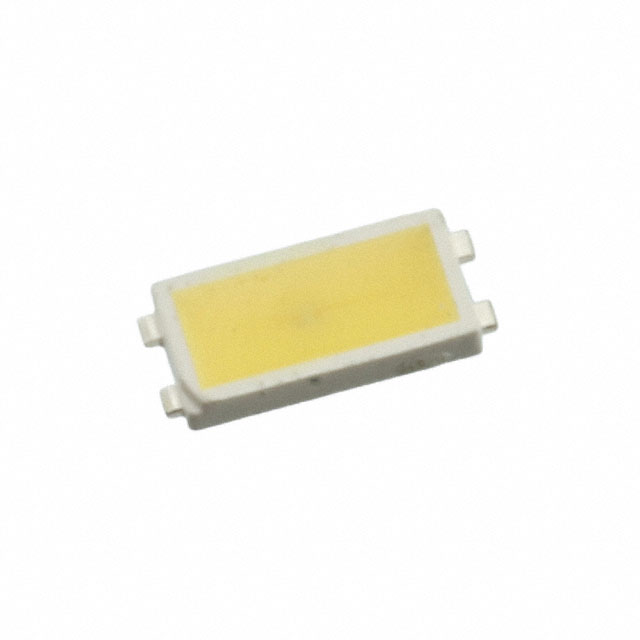

SMLK18WBJAW
LED COOL WHITE DIFFUSED 4520 SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More
Rohm Semiconductor SMLK1 Series LED, part number SMLK18WBJAW, offers a cool white diffused light with a color temperature of 5000K. This surface-mount component, housed in a 4520 (1808) package, features a 3.9V forward voltage and a typical test current of 90mA. The diffused lens, measuring 3.50mm x 1.50mm, is a rectangle with a flat top, providing a standard configuration. This component is commonly utilized in industrial automation and consumer electronics for indication purposes. The device is supplied on a tape and reel.
Additional Information
Series: SMLK1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Leads |
| Color | White, Cool |
| Size / Dimension | 4.00mm L x 2.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 4.8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.9V |
| Lens Color | White |
| Current - Test | 90mA |
| Viewing Angle | - |
| Height (Max) | 0.70mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 5000K |
| Supplier Device Package | 4520(1808) |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 3.50mm x 1.50mm |
