SMLE13WBC8W1
LED WHITE 0603 SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More

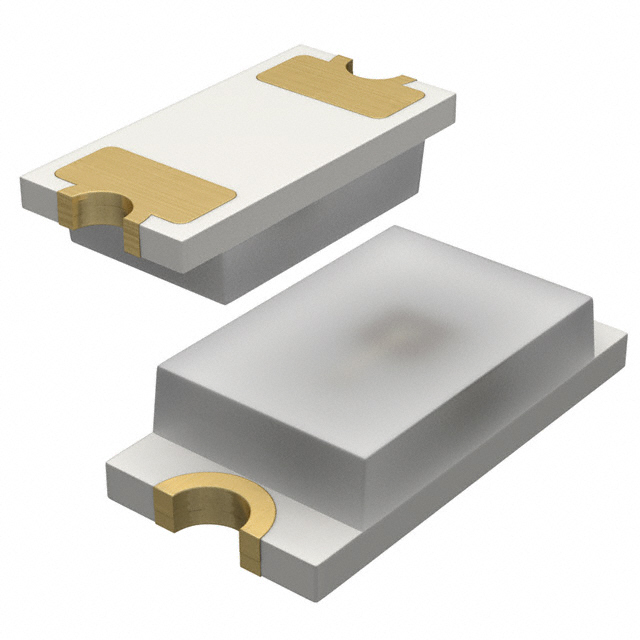

Rohm Semiconductor SMLE13WBC8W1 is a white LED designed for discrete indication. This surface mount component features a compact 0603 (1608 Metric) package with dimensions of 1.60mm L x 0.80mm W and a low profile of 0.46mm. It operates with a typical forward voltage of 2.9V and a test current of 5mA, delivering a millicandela rating of 140mcd. The LED has a rectangular lens style with a flat top, measuring 1.20mm x 0.80mm. Supplied in Tape & Reel (TR) packaging, this component is suitable for applications in automotive, industrial, and consumer electronics where reliable visual status indication is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | White |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 140mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Lens Color | - |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 0.46mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 0603 (1608 Metric) |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.80mm |
