SML812BCTT86
LED BLUE CLEAR 1305 SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More

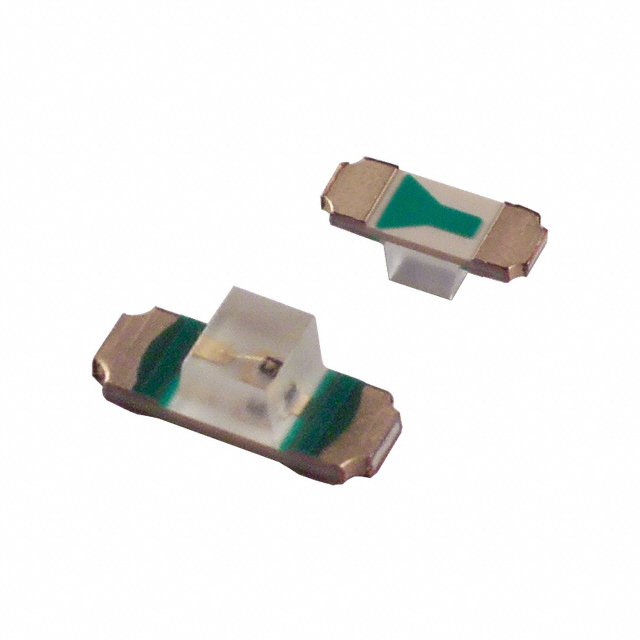

Rohm Semiconductor SML-81 Series Blue LED, part number SML812BCTT86, is a discrete surface-mount component designed for indication applications. This 3.3V device emits a dominant wavelength of 470nm, producing a clear blue light with a typical luminous intensity of 56mcd at 20mA. The 1305 (3412 Metric) package features a colorless, clear lens with a flat-top rectangular shape, measuring 1.20mm x 1.25mm. The overall dimensions of the component are 3.40mm L x 1.25mm W, with a maximum height of 1.15mm. This component is commonly utilized in industrial automation, medical devices, and consumer electronics where reliable visual feedback is critical. The SML812BCTT86 is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: SML-81RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1305 (3412 Metric) |
| Color | Blue |
| Size / Dimension | 3.40mm L x 1.25mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 56mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 1.15mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | 3412(1305) |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 1.25mm |
