SML522BUWT86
LED BLUE/RED DIFFUSED SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More

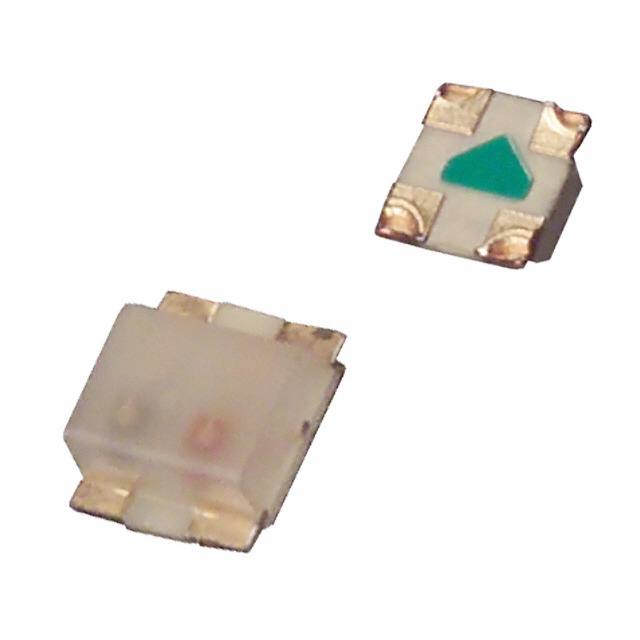

The Rohm Semiconductor SML-52 series SML522BUWT86 is a dual-color LED component featuring independent blue and red emitters within a 0605 (1613 Metric) surface-mount package. This diffused, rectangular LED with a flat top lens offers a dominant wavelength of 470nm for blue and 624nm for red. Tested at 5mA, the component provides a typical forward voltage of 2.9V for blue and 1.9V for red, with luminous intensity ratings of 22mcd for blue and 21mcd for red. The lens transparency is diffused, and the lens color is white. This component is suitable for various indication applications across consumer electronics, industrial control, and automotive sectors. It is supplied in Tape & Reel packaging.
Additional Information
Series: SML-52RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0605 (1613 Metric) |
| Color | Blue, Red |
| Size / Dimension | 1.50mm L x 1.30mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 22mcd Blue, 21mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.9V Blue, 1.9V Red |
| Lens Color | White |
| Current - Test | 5mA Blue, 5mA Red |
| Viewing Angle | - |
| Height (Max) | 0.70mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 470nm Blue, 624nm Red |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.30mm |
