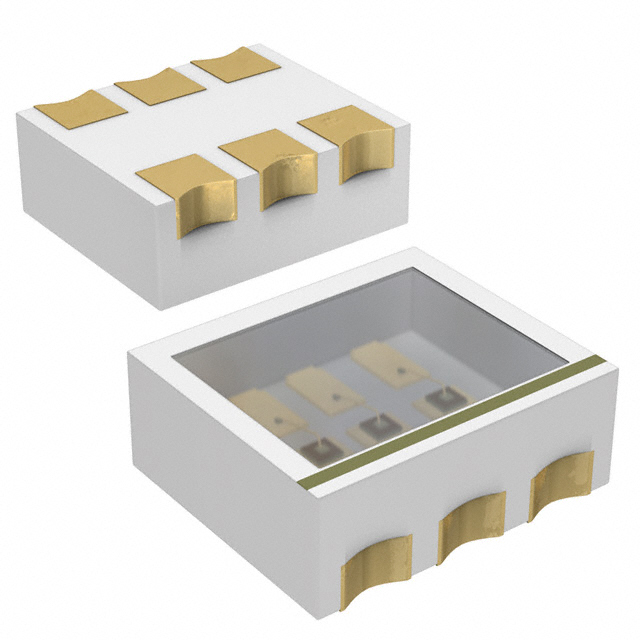

SML032RGB1T1
LED RGB CLEAR 1412 SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More
Rohm Semiconductor SML032RGB1T1 is a discrete RGB LED housed in a 1412 (3530 Metric) surface-mount package. This component delivers independent Red, Green, and Blue light emission with dominant wavelengths of 630nm (Red), 530nm (Green), and 470nm (Blue). Typical forward voltage requirements are 2.2V for Red, 3.3V for Green, and 3.2V for Blue, each tested at 20mA. The SML032RGB1T1 features a clear, colorless lens with a flat-top rectangular design measuring 2.30mm x 2.90mm. Achieved luminous intensity ratings are 350mcd (Red), 500mcd (Green), and 125mcd (Blue). The overall component dimensions are 3.50mm L x 3.00mm W with a maximum height of 1.45mm. This device is supplied on a Tape & Reel (TR) for efficient automated assembly. Applications include general indication and illumination within the automotive and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1412 (3530 Metric) |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.50mm L x 3.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 350mcd Red, 500mcd Green, 125mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3.3V Green, 3.2V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | - |
| Height (Max) | 1.45mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 630nm Red, 530nm Green, 470nm Blue |
| Supplier Device Package | 1412 (3530) |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.30mm x 2.90mm |
