SML022BUTT86
LED BLUE/RED CLEAR 1210 SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More

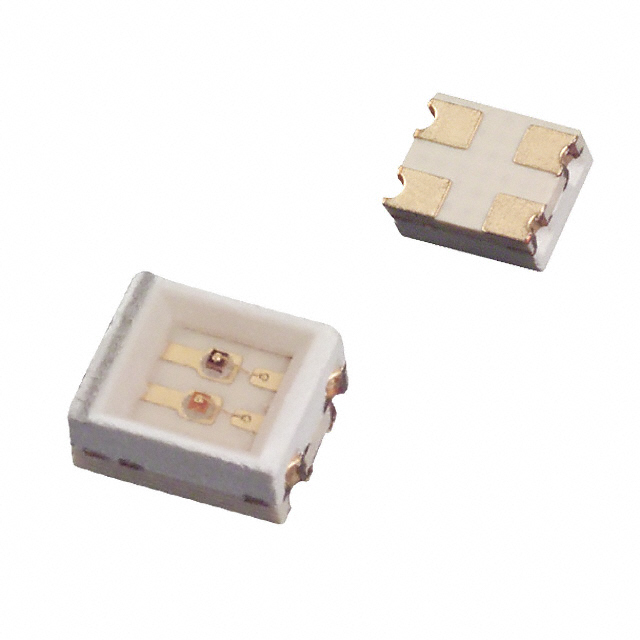

Rohm Semiconductor SML-02 series SML022BUTT86 is a bicolor LED component featuring independent blue and red emitters. This 1210 (3225 Metric) SMD package houses a clear, colorless lens with a flat top rectangular style. The device is configured for surface mounting and is supplied on tape and reel. The blue emitter provides a dominant wavelength of 470nm with a typical forward voltage of 3.2V and luminous intensity of 140mcd at 20mA. The red emitter operates at 624nm with a typical forward voltage of 2V and a luminous intensity of 220mcd at 20mA. This component is suitable for indication applications across various industries including automotive, industrial control, and consumer electronics.
Additional Information
Series: SML-02RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1210 (3225 Metric) |
| Color | Blue, Red |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 140mcd Blue, 220mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 3.2V Blue, 2V Red |
| Lens Color | Colorless |
| Current - Test | 20mA Blue, 20mA Red |
| Viewing Angle | - |
| Height (Max) | 1.50mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 470nm Blue, 624nm Red |
| Supplier Device Package | 1210 (3025 Metric) |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.30mm x 2.10mm |
