SML012EC4TT86
LED GREEN CLEAR 3020 SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More
Rohm Semiconductor SML-01 series green LED, part number SML012EC4TT86. This discrete LED features a 3020 (1208 Metric) surface mount package with dimensions of 3.00mm L x 2.00mm W x 1.50mm H. It provides clear green illumination with a typical forward voltage of 3.2V and a forward current of 20mA, achieving a millicandela rating of 140mcd. The lens is colorless, clear, and rectangular with a flat top, measuring 2.30mm x 1.60mm. This component is commonly utilized in industrial automation, consumer electronics, and automotive applications for status indication. Supplied in tape and reel packaging.
Additional Information
Series: SML-01RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1208 (3020 Metric) |
| Color | Green |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 140mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 1.50mm |
| Wavelength - Peak | 523nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 3020 (1208) |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.30mm x 1.60mm |
Request a Quote
Clients Also Buy

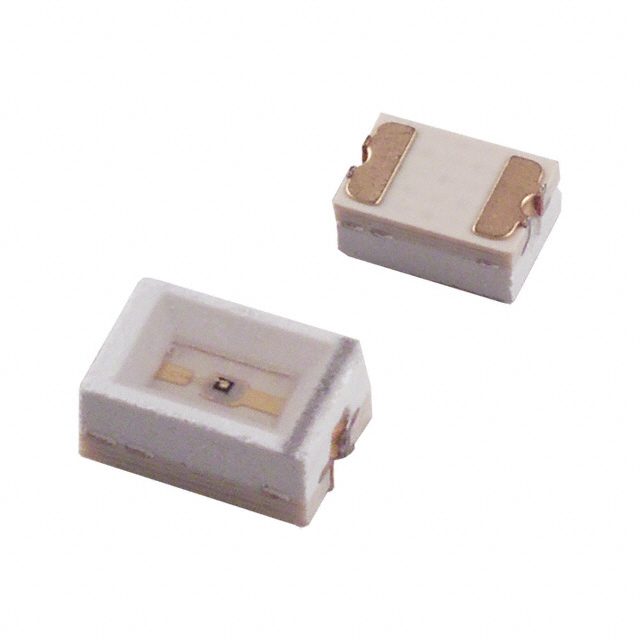

SML012BC4TT86
