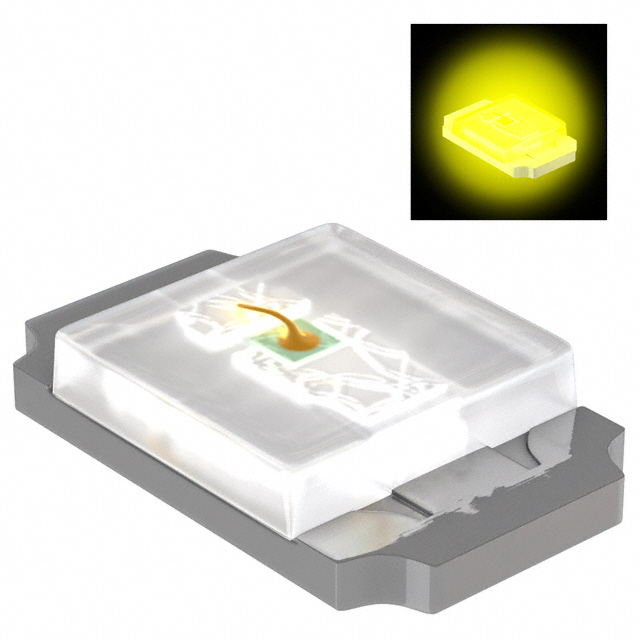

SML-P12YTT86
LED YELLOW CLEAR 1006 SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More
Yellow 590nm LED Indication - Discrete 2.1V 0402 (1006 Metric)
Additional Information
Series: PicoLED™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1006 Metric) |
| Color | Yellow |
| Size / Dimension | 1.00mm L x 0.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 0.25mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | 1006 (0402) |
| Lens Transparency | Clear |
| Lens Style | Square with Flat Top |
| Lens Size | 0.60mm |
Request a Quote
Clients Also Buy

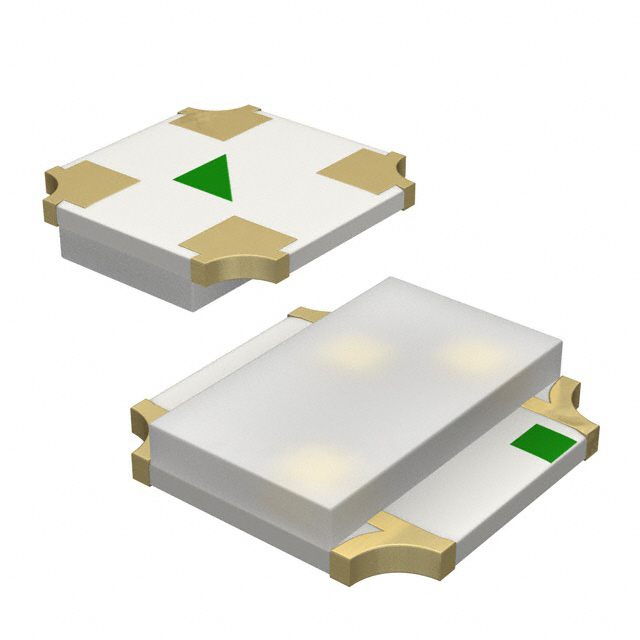

SMLP34RGB1W3
LED RGB DIFFUSED PICOLED SMD

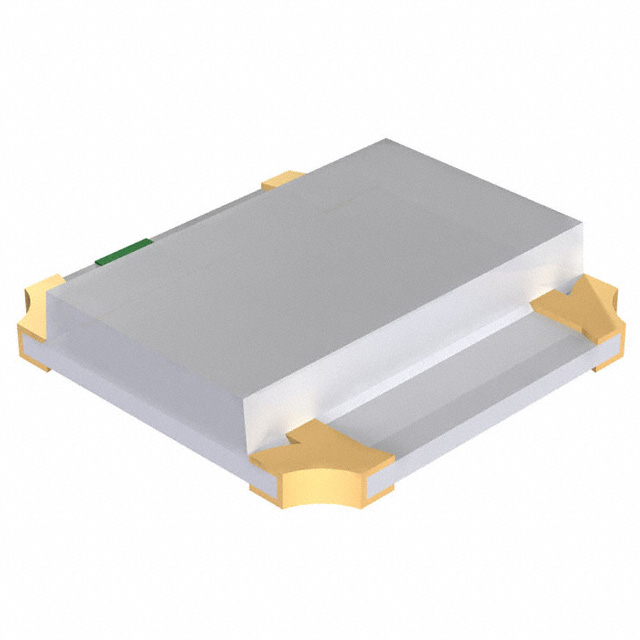

SMLP34RGB2W3
