SML-J14DTT96
LED ORANGE CLEAR CHIP SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More

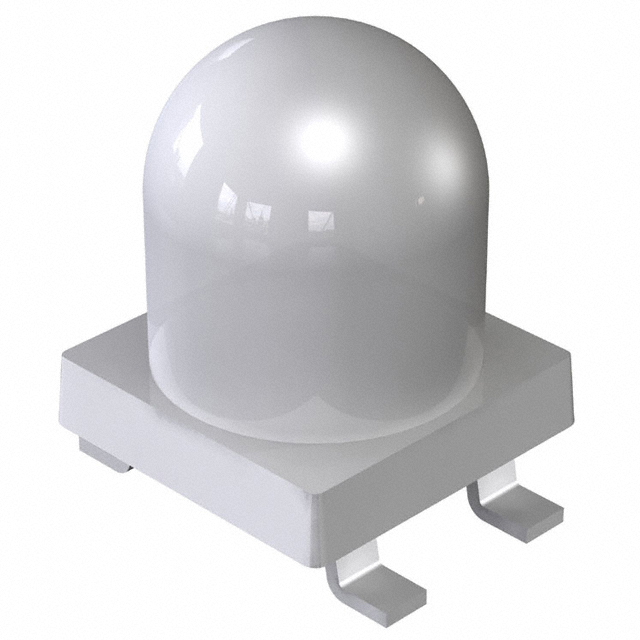

Rohm Semiconductor SML-J14DTT96 is a high-brightness orange LED designed for surface-mount applications. This discrete LED features a clear, colorless lens with a round, domed top, providing a concentrated light output. Operating at a typical forward voltage of 2V and a test current of 20mA, the SML-J14DTT96 delivers a significant luminous intensity of 28000mcd. The component is housed in a 4-SMD, Gull Wing package with dimensions of 3.40mm by 3.40mm, and a maximum height of 4.65mm. Its peak wavelength is 611nm. This LED is suitable for various industrial applications requiring reliable visual indication, including automotive, industrial automation, and consumer electronics. The SML-J14DTT96 is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Color | Orange |
| Size / Dimension | 3.40mm L x 3.40mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 28000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 4.65mm |
| Wavelength - Peak | 611nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | - |
