SML-521MUWT86
LED GREEN/RED DIFFUSED 1315 SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More

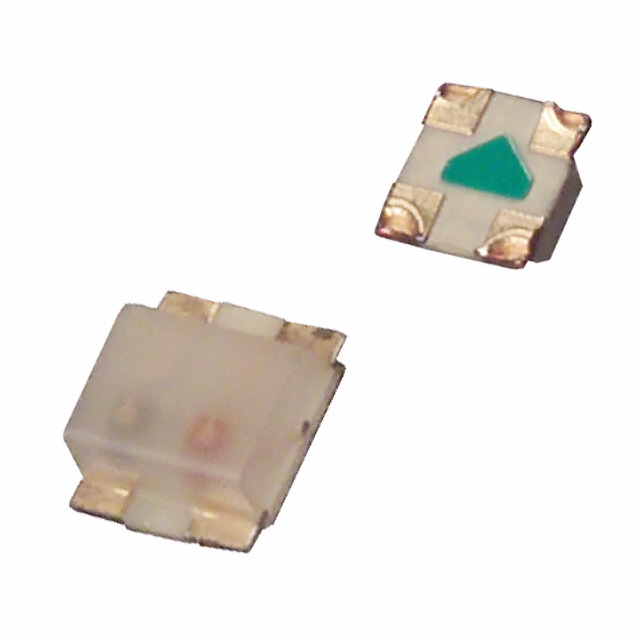

Rohm Semiconductor SML-521MUWT86 is a dual-color, diffused LED indicator. This surface-mount component, housed in a 0605 (1513 Metric) package, offers independent green and red illumination. The green LED exhibits a typical forward voltage of 2.2V and a peak wavelength of 570nm, producing 16mcd at 20mA. The red LED operates at a typical forward voltage of 1.9V with a peak wavelength of 630nm, delivering 63mcd at 20mA. Its lens is white, diffused, and rectangular with a flat top, measuring 1.10mm x 1.30mm. The overall dimensions of the component are 1.50mm L x 1.30mm W with a maximum height of 0.70mm. This device is commonly utilized in industrial automation, consumer electronics, and automotive applications where distinct visual feedback is required. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0605 (1513 Metric) |
| Color | Green, Red |
| Size / Dimension | 1.50mm L x 1.30mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 16mcd Green, 63mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 1.9V Red |
| Lens Color | White |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | - |
| Height (Max) | 0.70mm |
| Wavelength - Peak | 570nm Green, 630nm Red |
| Wavelength - Dominant | - |
| Supplier Device Package | 1315 (0605) |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.30mm |
