SML-412MWT86
LED GREEN DIFFUSED CHIP SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More

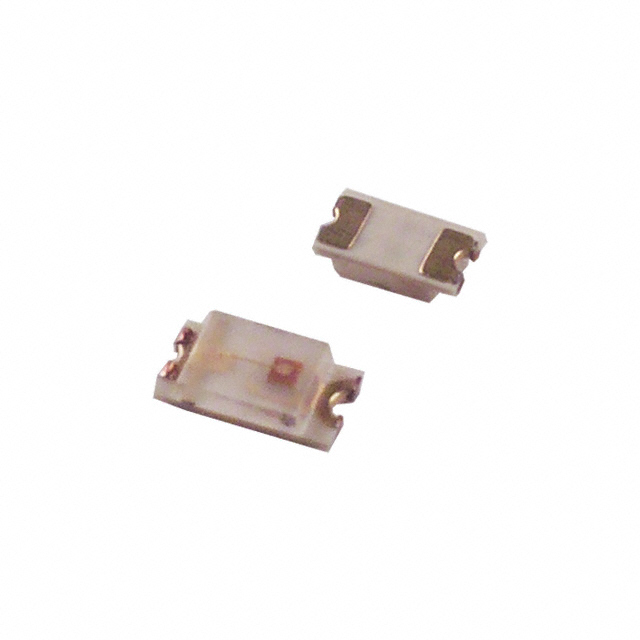

Rohm Semiconductor SML-412MWT86 is a green diffused chip LED suitable for surface-mount applications. This component features a 2.1V forward voltage and a typical test current of 20mA, yielding a millicandela rating of 40mcd. The LED is housed in a 0603 (1608 Metric) package with dimensions of 1.60mm L x 0.80mm W and a maximum height of 0.50mm. Its diffused lens, with a white color and a rectangle with a flat top style, is 1.20mm x 0.80mm. The SML-412MWT86 is provided on Tape & Reel (TR) packaging. This discrete LED is commonly utilized in industrial automation, consumer electronics, and medical devices for visual indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Green |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 40mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | White |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 0.50mm |
| Wavelength - Peak | 570nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Chip LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.80mm |
