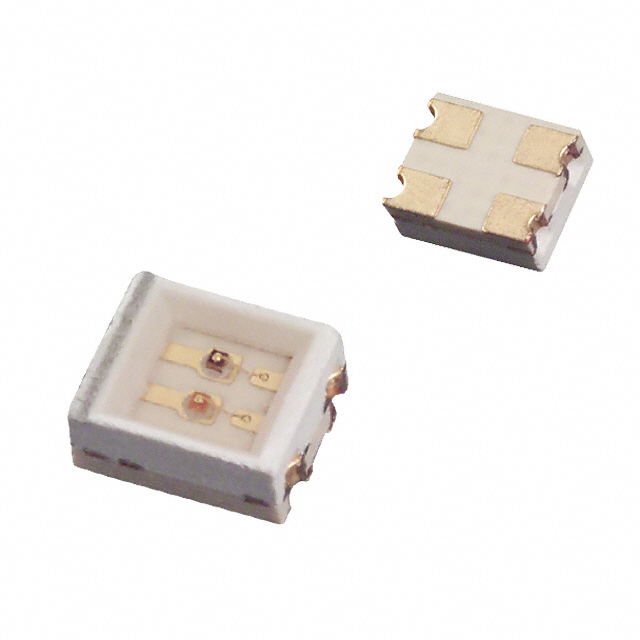

SML-020PDTT87
LED GREEN/ORANGE CLEAR 1210 SMDManufacturer: Rohm Semiconductor
Categories: LED Indication - Discrete
Quality Control: Learn More
Rohm Semiconductor SML-020 series dual-color LED, part number SML-020PDTT87, features independent Green and Orange illumination within a clear 1210 (3225 Metric) surface-mount package. This discrete LED component offers a forward voltage of 2.2V for Green and 2V for Orange at a 20mA test current. The clear, colorless lens has dimensions of 2.30mm x 2.10mm, with a flat-top rectangular style. Typical luminous intensity is 4mcd for Green and 10mcd for Orange. The component is supplied on Tape & Reel (TR). Its compact size, measuring 3.00mm L x 2.50mm W and a maximum height of 1.50mm, makes it suitable for applications in consumer electronics, industrial controls, and automotive systems requiring dual-color status indication.
Additional Information
Series: SML-020RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1210 (3225 Metric) |
| Color | Green, Orange |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 4mcd Green, 10mcd Orange |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Orange |
| Lens Color | Colorless |
| Current - Test | 20mA Green, 20mA Orange |
| Viewing Angle | - |
| Height (Max) | 1.50mm |
| Wavelength - Peak | 555nm Green, 610nm Orange |
| Wavelength - Dominant | - |
| Supplier Device Package | 1210 (3025 Metric) |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.30mm x 2.10mm |
