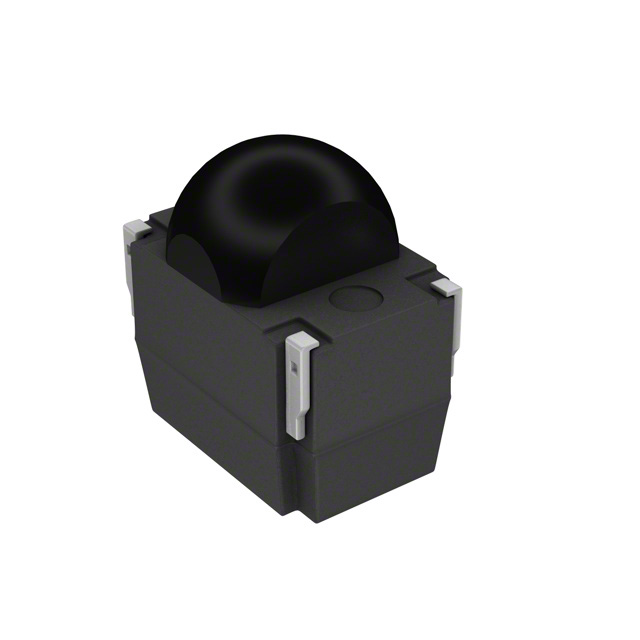

SIM-012SBT97
EMITTER IR 950NM 40MA SMDManufacturer: Rohm Semiconductor
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Rohm Semiconductor SIM-012SBT97 is an infrared emitter with a 950nm wavelength. This surface-mount device is designed for applications requiring precise infrared emission, operating with a typical forward voltage of 1.2V and a maximum forward current of 40mA. The emitter provides a radiant intensity of 0.9mW/sr at 20mA, with a narrow viewing angle of 24°.
The SIM-012SBT97 is packaged in a 4-SMD, No Lead configuration, suitable for automated assembly processes. Its operating temperature range is from -30°C to 85°C. This component is commonly utilized in automotive, industrial automation, and consumer electronics sectors where reliable IR signaling and sensing are critical. The part is supplied on tape and reel for efficient manufacturing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Wavelength | 950nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Viewing Angle | 24° |
| Current - DC Forward (If) (Max) | 40mA |
| Radiant Intensity (Ie) Min @ If | 0.9mW/sr @ 20mA |
