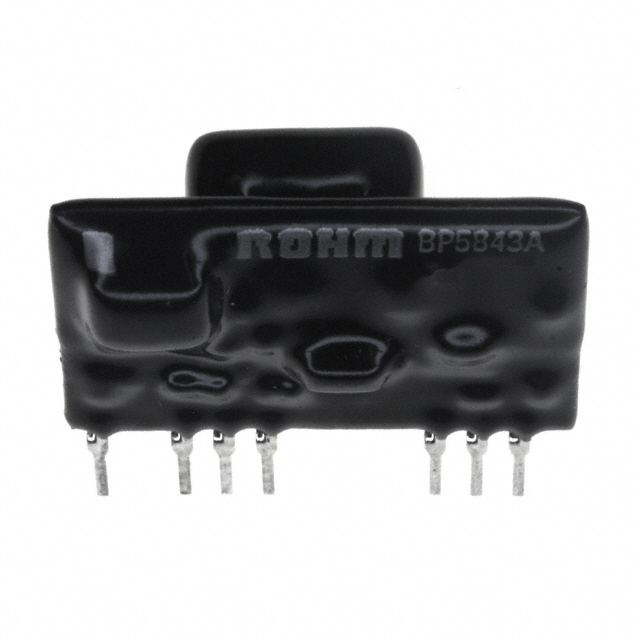

BP5843A
IC LED DRIVER OFFL 350MAManufacturer: Rohm Semiconductor
Categories: LED Drivers
Quality Control: Learn More
Rohm Semiconductor BP5843A is an AC/DC offline switcher LED driver IC featuring a single output channel capable of delivering up to 350mA. This component is designed for efficient power conversion in lighting applications. The BP5843A operates with a wide input voltage range from 113V to 170V, with an output voltage range of 2.5V to 12V. Its through-hole mounting type and 11-SIP, 7-lead package facilitate integration into various PCB designs. This device is commonly found in industrial and commercial lighting systems requiring reliable LED control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 11-SIP, 7 Leads |
| Voltage - Output | 2.5V ~ 12V |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Frequency | - |
| Type | AC DC Offline Switcher |
| Operating Temperature | -20°C ~ 80°C (TA) |
| Applications | - |
| Current - Output / Channel | 350mA |
| Internal Switch(s) | - |
| Topology | - |
| Supplier Device Package | - |
| Dimming | - |
| Voltage - Supply (Min) | 113V |
| Voltage - Supply (Max) | 170V |
