BH6942KN-E2
IC LED DRIVER RGLTR 20MA 20VQFNManufacturer: Rohm Semiconductor
Categories: LED Drivers
Quality Control: Learn More

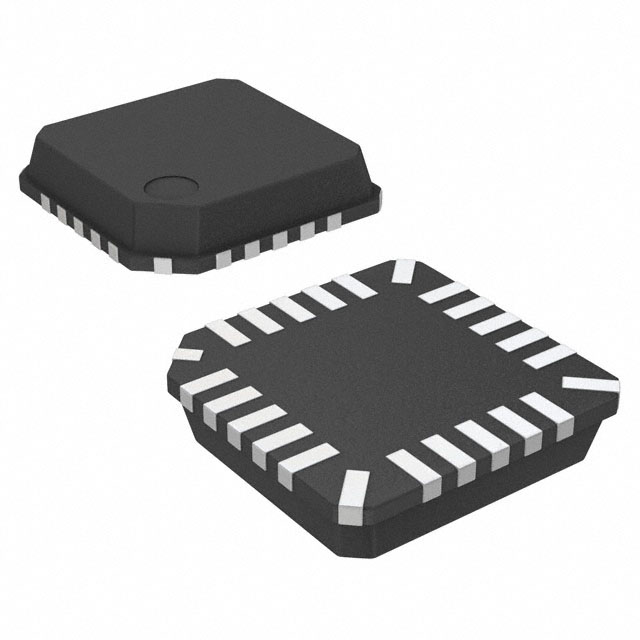

The Rohm Semiconductor BH6942KN-E2 is a 5-output DC-DC regulator featuring a switched capacitor (charge pump) topology. This electronic component is designed for efficient LED driving with a regulated output current of 20mA per channel. Operating with a supply voltage range of 2.8V to 4.5V, the BH6942KN-E2 integrates internal switches and operates at a frequency of 1.2MHz. The device is available in a compact 20-VQFN package suitable for surface mounting. Its capabilities make it suitable for applications in portable electronics and display backlighting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFQFN |
| Voltage - Output | 4.5V |
| Mounting Type | Surface Mount |
| Number of Outputs | 5 |
| Frequency | 1.2MHz |
| Type | DC DC Regulator |
| Operating Temperature | -30°C ~ 80°C (TA) |
| Applications | - |
| Current - Output / Channel | 20mA |
| Internal Switch(s) | Yes |
| Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | 20-VQFN |
| Dimming | - |
| Voltage - Supply (Min) | 2.8V |
| Voltage - Supply (Max) | 4.5V |
