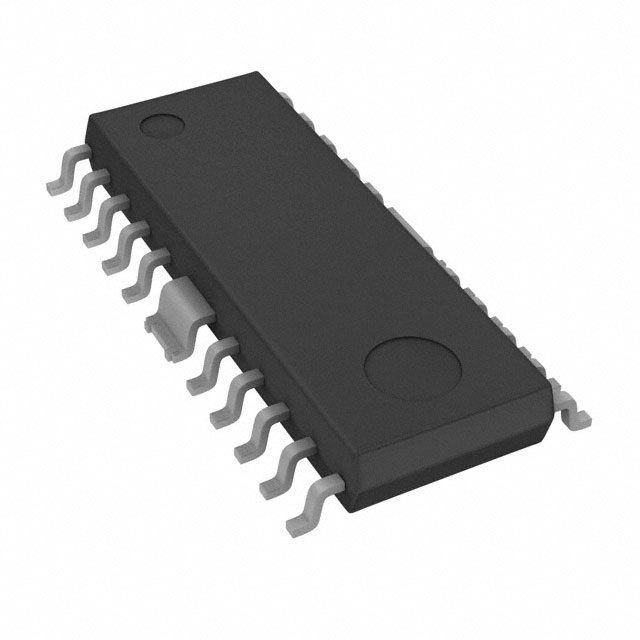

BD9394FP-E2
IC WHITE LED DVR DCDC 20HSOPManufacturer: Rohm Semiconductor
Categories: LED Drivers
Quality Control: Learn More
The Rohm Semiconductor BD9394FP-E2 is a 4-output DC-DC boost LED driver IC. This device integrates internal power switches and supports both analog and PWM dimming for precise control of white LED backlighting applications. Featuring a 150kHz switching frequency, it operates from a 9V to 35V supply voltage and delivers up to 150mA per channel. The BD9394FP-E2 is housed in a 20-HSOP package with heat tabs, suitable for surface mounting. Its robust design makes it ideal for demanding applications requiring efficient and reliable LED illumination.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.213"", 5.40mm Width) + 2 Heat Tabs |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Frequency | 150kHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 150mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 20-HSOP |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 9V |
| Voltage - Supply (Max) | 35V |
