BD82103GWL-E2
IC LED DRVR RGLTR 20MA UCSP50L1Manufacturer: Rohm Semiconductor
Categories: LED Drivers
Quality Control: Learn More
The Rohm Semiconductor BD82103GWL-E2 is a 3-output DC-DC regulator featuring a switched capacitor (charge pump) topology. This highly integrated LED driver IC is designed for applications requiring efficient and compact LED driving solutions. It operates with an internal switch and supports a supply voltage range of 2.7V to 5.5V, with a maximum output current of 20mA per channel. The device boasts a switching frequency of 850kHz, contributing to its small footprint and minimal external component requirements. Supplied in a UCSP50L1 package, it is suitable for surface mounting and is delivered on tape and reel (TR). This component finds utility in various display backlighting scenarios and other power management applications where precise LED current regulation is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

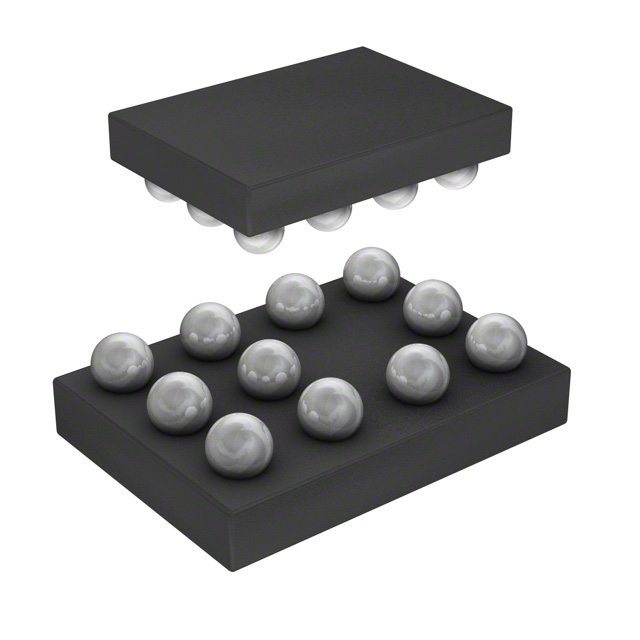

| Package / Case | 11-UFBGA, CSPBGA |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Frequency | 850kHz |
| Type | DC DC Regulator |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Applications | - |
| Current - Output / Channel | 20mA |
| Internal Switch(s) | Yes |
| Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | UCSP50L1 |
| Dimming | - |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
