BD7710GWL-E2
IC LED DVR 1.5A I2C UCSP50L2Manufacturer: Rohm Semiconductor
Categories: LED Drivers
Quality Control: Learn More
The Rohm Semiconductor BD7710GWL-E2 is a 3-output DC-DC boost LED driver IC. This component is designed for efficient power conversion with a 2MHz switching frequency. It features integrated switches and can deliver up to 1.5A per channel for flash applications. The device operates from a supply voltage range of 2.7V to 5.5V, with a maximum output voltage of 5.5V. Its compact 20-UCSP50L2 (1.9x2.1) package is ideal for space-constrained designs. The BD7710GWL-E2 is suitable for applications such as camera flash systems and other portable electronics requiring high-current LED driving. It is supplied in a Tape & Reel (TR) package for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

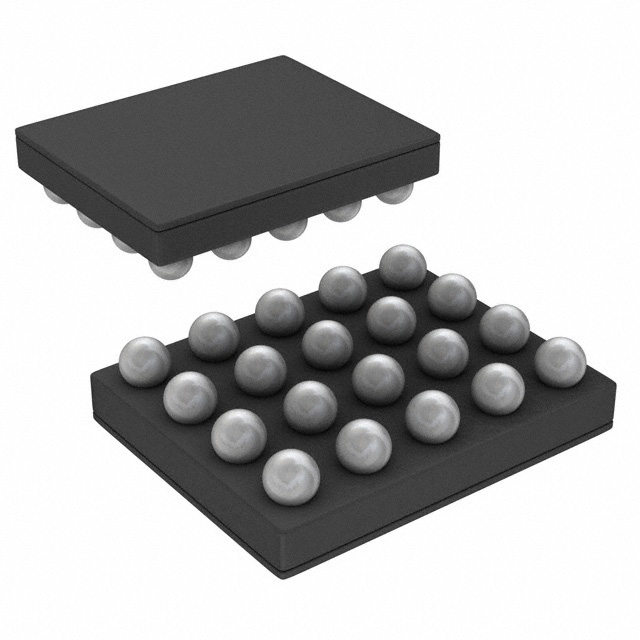

| Package / Case | 20-UFBGA, CSPBGA |
| Voltage - Output | 5.5V |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Frequency | 2MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Camera Flash |
| Current - Output / Channel | 1.5A (Flash) |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 20-UCSP50L2 (1.9x2.1) |
| Dimming | No |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
