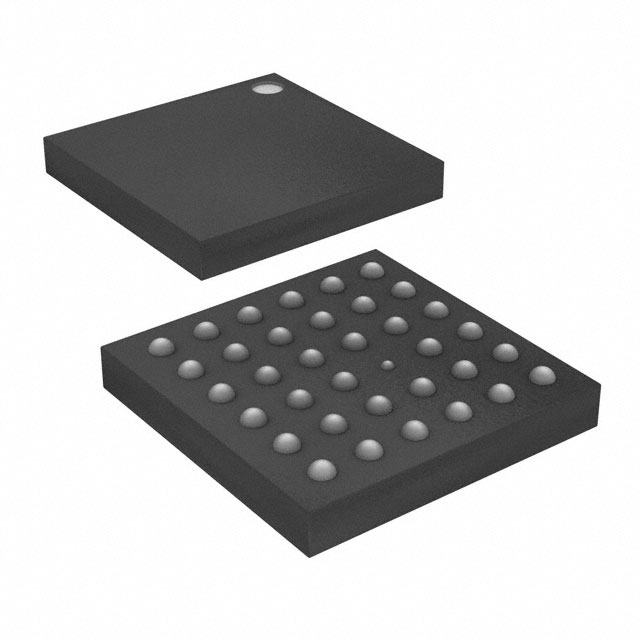

BD6085GUL-E2
IC LED DRVR RGLTR 30MA VCSP50L3Manufacturer: Rohm Semiconductor
Categories: LED Drivers
Quality Control: Learn More
Rohm Semiconductor's BD6085GUL-E2 is a DC-DC regulator featuring a switched capacitor (charge pump) topology. This compact device integrates 7 LED driver channels and 4 LDOs, delivering a regulated output of 5.1V. Designed for surface mount applications, it operates within a supply voltage range of 2.7V to 5.5V and supports a maximum output current of 30mA per channel. The BD6085GUL-E2 includes internal switching and operates at a frequency of 900kHz, making it suitable for efficient power management. This component is commonly utilized in backlight applications. The device is supplied in a VCSP50L3 package, presented on tape and reel for automated assembly. Its operating temperature range is -35°C to 85°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 35-UFBGA, CSPBGA |
| Voltage - Output | 5.1V |
| Mounting Type | Surface Mount |
| Number of Outputs | 7 + 4LDOs |
| Frequency | 900kHz |
| Type | DC DC Regulator |
| Operating Temperature | -35°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | Yes |
| Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | VCSP50L3 |
| Dimming | - |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
