BD6066EKN-E2

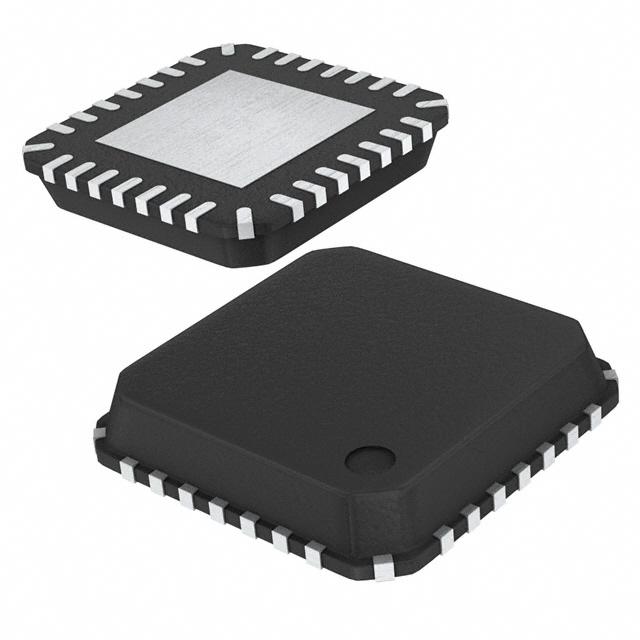

IC LED DRV CTRL PWM 30MA HQFN28VManufacturer: Rohm Semiconductor
Categories: LED Drivers
Quality Control: Learn More
The Rohm Semiconductor BD6066EKN-E2 is a 4-output DC/DC controller featuring a step-up (boost) topology for LED driving applications. This device offers precise PWM dimming control and can deliver up to 30mA per channel. Operating with a supply voltage range of 2.7V to 22V, it supports an output voltage of up to 40.5V. The internal switching frequency is rated at 1MHz. Designed for surface-mount integration, it is provided in a 28-VFQFN exposed pad package (HQFN28V) on tape and reel. This component is suitable for backlight applications. The operating temperature range is -30°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VFQFN Exposed Pad |
| Voltage - Output | 40.5V |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Frequency | 1MHz |
| Type | DC DC Controller |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | No |
| Topology | Step-Up (Boost) |
| Supplier Device Package | HQFN28V |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 22V |
