BD1606MVV-E2
IC LED DRV RGLTR I2C 20MA 16SQFNManufacturer: Rohm Semiconductor
Categories: LED Drivers
Quality Control: Learn More
The Rohm Semiconductor BD1606MVV-E2 is a 6-output DC-DC regulator featuring a switched-capacitor (charge pump) topology. This LED driver IC supports I2C dimming control for precise brightness adjustment of LED backlights. With an internal switch capability and an output current of 20mA per channel, it is designed for efficient operation. The device operates from a 2.7V to 5.5V supply and features a switching frequency of 1MHz. Supplied in a 16-SQFN package (SQFN016V4040) for surface mounting, the BD1606MVV-E2 is suitable for backlight applications in various electronic devices. It operates within an ambient temperature range of -30°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

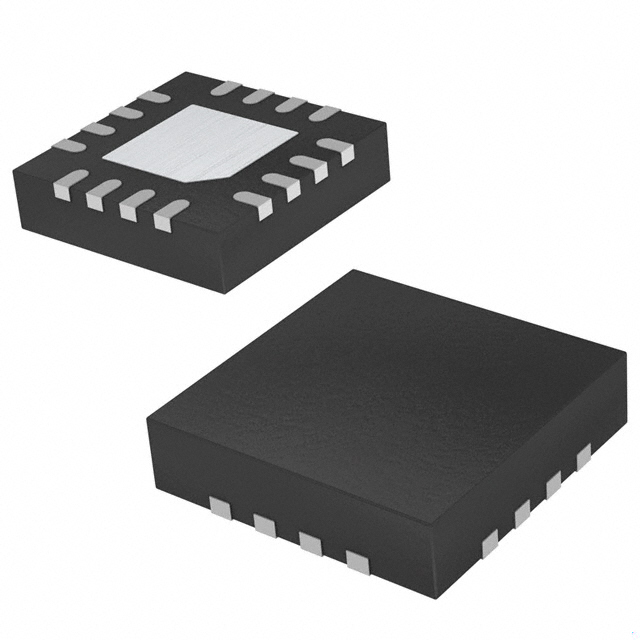

| Package / Case | 16-VQFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Frequency | 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 20mA |
| Internal Switch(s) | Yes |
| Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | SQFN016V4040 |
| Dimming | I2C |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
