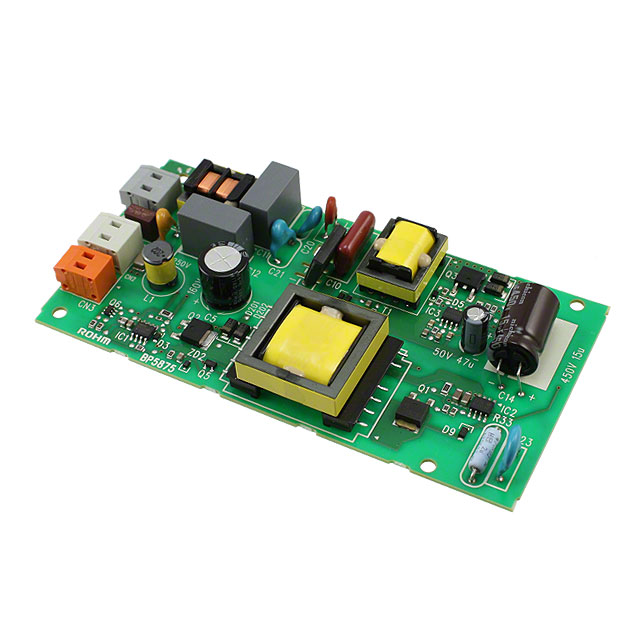

BP5875
LED DRIVER CC AC/DC 60-91.2VManufacturer: Rohm Semiconductor
Categories: LED Drivers
Quality Control: Learn More
Rohm Semiconductor BP Series BP5875 is a constant current AC/DC LED driver. This device facilitates AC to DC conversion with a single output, delivering a maximum current of 300mA. Designed for AC input voltages ranging from 80VAC to 264VAC, it provides a regulated output voltage between 60V and 91.2V. The BP5875 supports analog dimming and is packaged in a tray. Its capabilities make it suitable for applications in general lighting, architectural lighting, and industrial illumination systems requiring efficient and stable LED drive. The component operates within an ambient temperature range of -20°C to 65°C.
Additional Information
Series: BPRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Size / Dimension | 5.12"" L x 2.56"" W x 0.76"" H (130.0mm x 65.0mm x 19.2mm) |
| Voltage - Output | 60 ~ 91.2V |
| Type | Constant Current |
| Operating Temperature | -20°C ~ 65°C |
| Termination Style | Connector |
| Voltage - Input (Max) | 264VAC |
| Approval Agency | - |
| Ratings | - |
| Efficiency | - |
| Topology | AC DC Converter |
| Current - Output (Max) | 300mA |
| Dimming | Analog |
| Voltage - Input (Min) | 80VAC |
| Power (Watts) | 27 W |
| Number of Outputs | 1 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

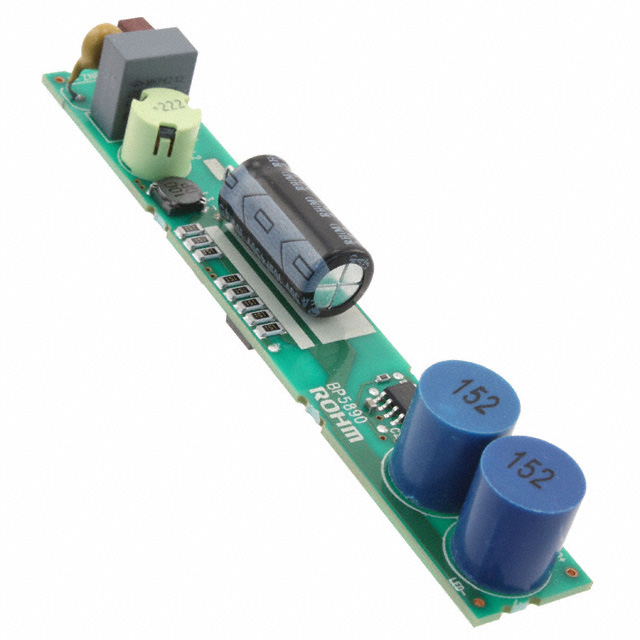

BP5890
