LF-301VA
DISPLAY 7SEG 0.31"" SGL RED 10SMDManufacturer: Rohm Semiconductor
Categories: LED Character and Numeric
Quality Control: Learn More

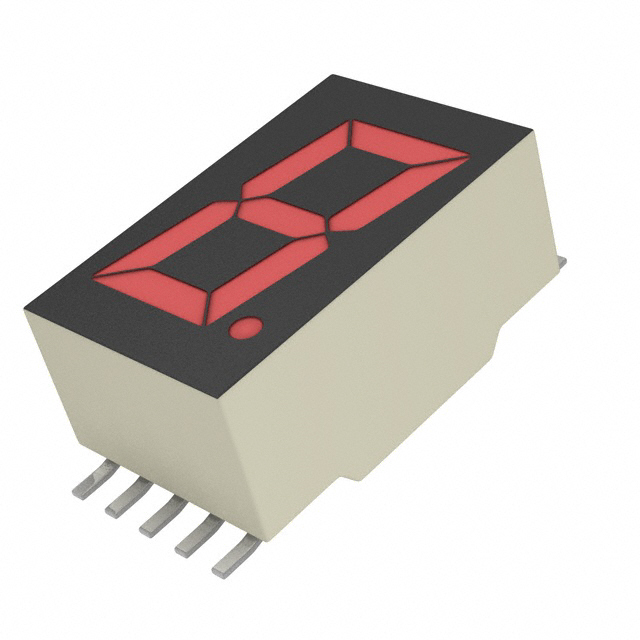

The Rohm Semiconductor LF-301VA is a single-digit, 7-segment numeric display module featuring a vibrant red LED. This component utilizes a common anode configuration and operates with a typical forward voltage of 2V and a test current of 10mA, producing a luminous intensity of 10mcd. The digit height is 0.31 inches (8.00mm). Packaged in a 10-SMD, No Lead format and supplied on tape and reel, the LF-301VA offers a compact footprint with dimensions of 0.433" H x 0.268" W x 0.197" D (11.00mm x 6.80mm x 5.00mm). Its peak wavelength is 650nm. This display module is suitable for applications in industrial control, consumer electronics, and instrumentation. The maximum power dissipation is 40mW.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.433"" H x 0.268"" W x 0.197"" D (11.00mm x 6.80mm x 5.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 10mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.31"" (8.00mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 10mA |
| Wavelength - Peak | 650nm |
| Power Dissipation (Max) | 40mW |
