LF-301MA
DISPLAY 7SEG 0.31"" SGL GRN 10SMDManufacturer: Rohm Semiconductor
Categories: LED Character and Numeric
Quality Control: Learn More

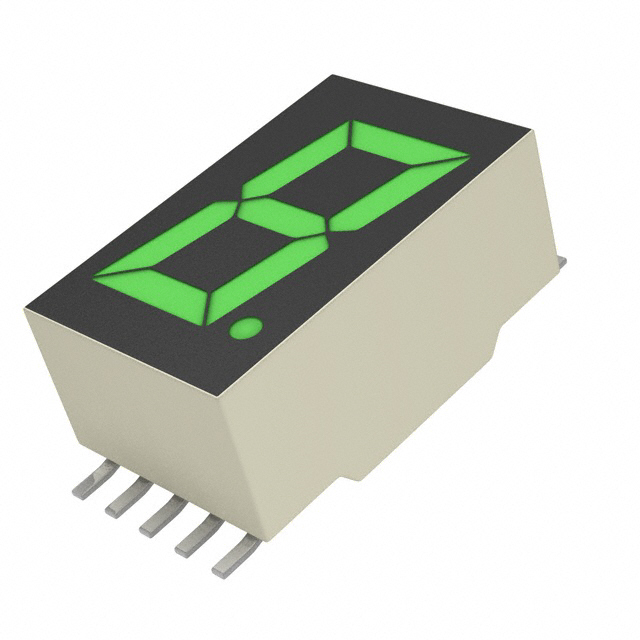

Rohm Semiconductor LF-301MA is a single-digit, 7-segment display module featuring a vibrant green illumination. This 10-SMD, No Lead component operates with a typical forward voltage of 2.1V and a test current of 10mA, achieving a luminous intensity of 10mcd. The character height is 0.31 inches (8.00mm), with overall dimensions of 11.00mm x 6.80mm x 5.00mm. Designed for common anode configuration, it offers a maximum power dissipation of 60mW. Its peak wavelength is 563nm. This display module is suitable for applications in industrial control systems, instrumentation, and consumer electronics requiring clear numerical indication. The LF-301MA is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.433"" H x 0.268"" W x 0.197"" D (11.00mm x 6.80mm x 5.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 10mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.31"" (8.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 10mA |
| Wavelength - Peak | 563nm |
| Power Dissipation (Max) | 60mW |
