LBP-602YA2
DISPLAY 7SEG 0.56"" DBL YLW 18DIPManufacturer: Rohm Semiconductor
Categories: LED Character and Numeric
Quality Control: Learn More
Rohm Semiconductor LBP-602YA2 from the LBP-602 A/K2 series is a dual-digit, 0.56-inch yellow 7-segment display module. This 18-DIP packaged component features a common anode configuration and operates with a typical forward voltage of 1.9V at a test current of 10mA, producing 450mcd luminous intensity. The display offers a peak wavelength of 590nm. Its dimensions are 0.748 inches high by 0.984 inches wide by 0.315 inches deep. This component is suitable for applications in industrial control, instrumentation, and point-of-sale systems. The maximum power dissipation is 896mW.
Additional Information
Series: LBP-602 A/K2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Yellow |
| Display Type | 7-Segment |
| Size / Dimension | 0.748"" H x 0.984"" W x 0.315"" D (19.00mm x 25.00mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 450mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56"" (14.30mm) |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Current - Test | 10mA |
| Wavelength - Peak | 590nm |
| Power Dissipation (Max) | 896mW |
Request a Quote
Clients Also Buy

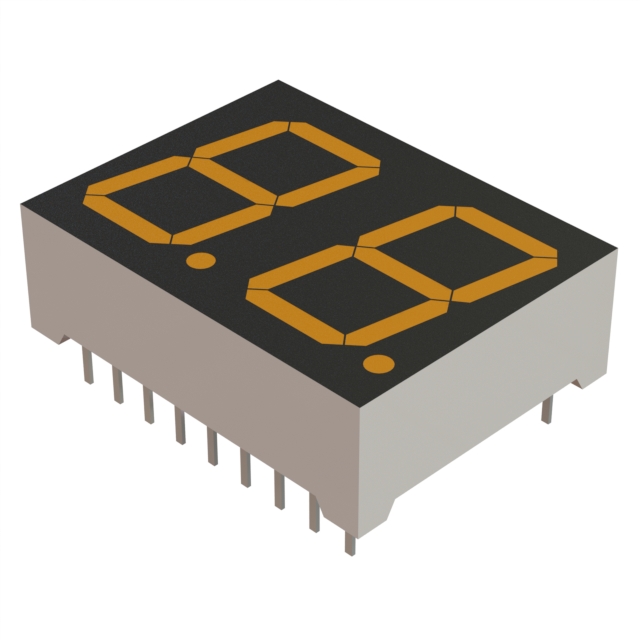

LBP-602DA2
DISPLAY 7SEG 0.56"" DBL ORG 18DIP
LBP-602DK2
DISPLAY 7SEG 0.56"" DBL ORG 18DIP

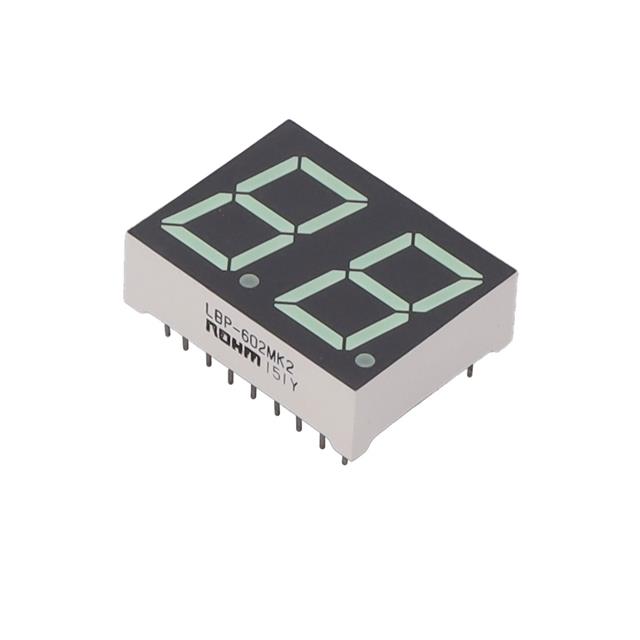

LBP-602MK2
