LB-602EA2
DISPLAY 7SEG 0.56"" DBL ORG 18DIPManufacturer: Rohm Semiconductor
Categories: LED Character and Numeric
Quality Control: Learn More

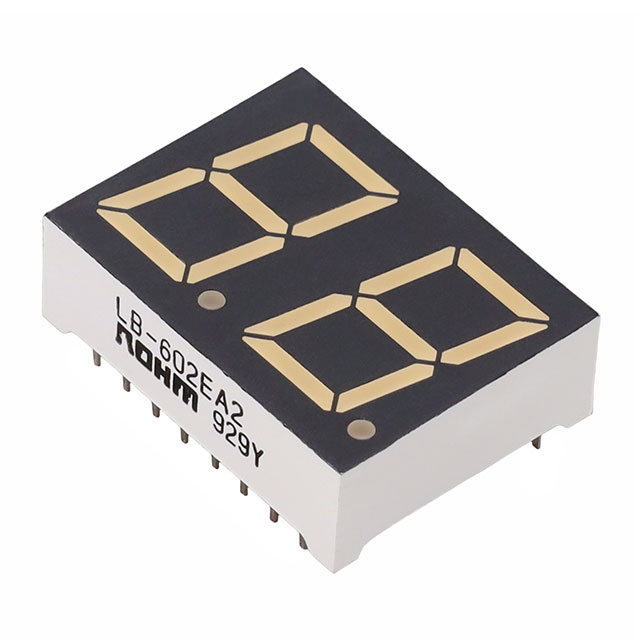

Rohm Semiconductor LB-602EA2 is a dual-digit, orange 7-segment display module from the LB-602 A/K2 series. This 18-DIP package component features a 0.56-inch character height and operates with a typical forward voltage of 2.05V and test current of 25mA, yielding a millicandela rating of 90mcd. The common anode configuration facilitates straightforward driving. Dimensions are 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm), with the DIP package measuring 0.600" (15.24mm) center-to-center pin spacing. This component is suitable for applications in industrial control, instrumentation, and general signage where clear numeric indication is required.
Additional Information
Series: LB-602 A/K2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Orange |
| Display Type | 7-Segment |
| Size / Dimension | 0.748"" H x 0.984"" W x 0.315"" D (19.00mm x 25.00mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 90mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56"" (14.30mm) |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Current - Test | 25mA |
| Wavelength - Peak | 610nm |
| Power Dissipation (Max) | 65mW |
