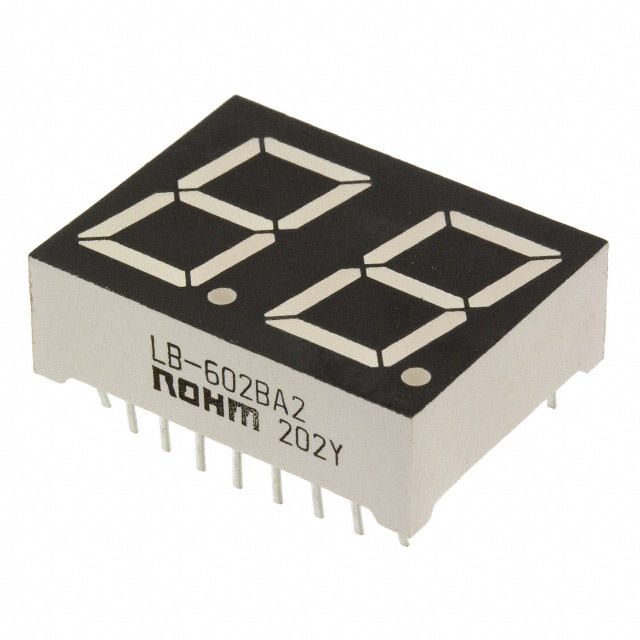

LB-602BA2
DISPLAY 7SEG 0.56"" DBL BLU 18DIPManufacturer: Rohm Semiconductor
Categories: LED Character and Numeric
Quality Control: Learn More
Rohm Semiconductor LB-602BA2 is a two-character, 0.56-inch blue 7-segment display module. This common anode device operates at a typical forward voltage of 3.6V and requires 10mA per segment for optimal performance, yielding a millicandela rating of 56mcd. The module features a peak wavelength of 470nm and a maximum power dissipation of 42mW. Its robust construction is housed in an 18-DIP package, with overall dimensions of 0.748 inches (19.00mm) high, 0.984 inches (25.00mm) wide, and 0.315 inches (8.00mm) deep. This component is suitable for applications in industrial automation, test and measurement equipment, and consumer electronics requiring clear numeric or alphanumeric readouts.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP |
| Color | Blue |
| Display Type | 7-Segment |
| Size / Dimension | 0.748"" H x 0.984"" W x 0.315"" D (19.00mm x 25.00mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 56mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56"" (14.30mm) |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Current - Test | 10mA |
| Wavelength - Peak | 470nm |
| Power Dissipation (Max) | 42mW |
