LB-502VN
DISPLAY 7SEG 0.51"" DBL RED 18DIPManufacturer: Rohm Semiconductor
Categories: LED Character and Numeric
Quality Control: Learn More
Rohm Semiconductor's LB-502VN is a 2-digit, 7-segment numeric display module featuring a bright red illumination. This component utilizes a common cathode configuration and operates with a typical forward voltage of 2V and a test current of 10mA, producing a millicandela rating of 16mcd. The character height is 0.51 inches (13.00mm), and the overall module dimensions are 0.689" H x 0.984" W x 0.276" D (17.50mm x 25.00mm x 7.00mm). The device is housed in an 18-DIP package with a 0.600" (15.24mm) pitch. The LB-502VN is suitable for applications in industrial control panels, instrumentation, and point-of-sale systems where clear, reliable numeric display is critical.
Additional Information
Series: LB-502DNRoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.689"" H x 0.984"" W x 0.276"" D (17.50mm x 25.00mm x 7.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 16mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.51"" (13.00mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 10mA |
| Wavelength - Peak | 650nm |
| Power Dissipation (Max) | 960mW |
Request a Quote
Clients Also Buy
LB-502MN
DISPLAY 7SEG 0.51"" DBL GRN 18DIP

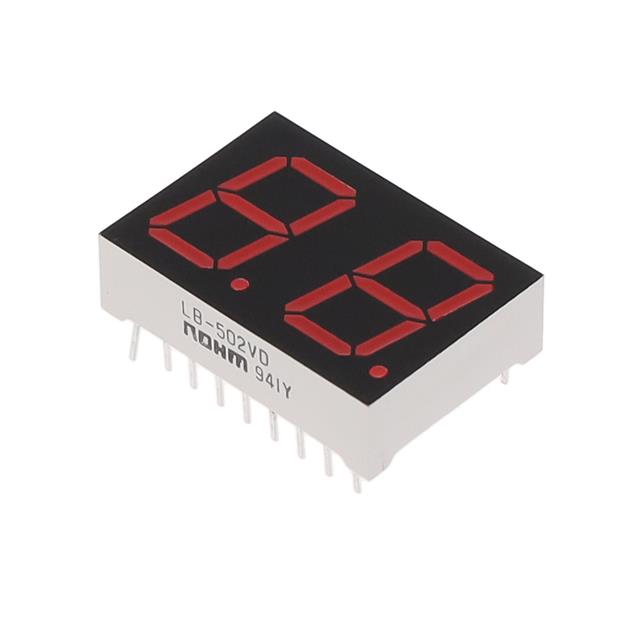

LB-502VD
