LB-303MK
DISPLAY 7SEG 0.31"" TRP GRN 12DIPManufacturer: Rohm Semiconductor
Categories: LED Character and Numeric
Quality Control: Learn More
Rohm Semiconductor LB-303MK is a 3-character, 7-segment display module featuring a vibrant green illumination. This component utilizes a common cathode configuration and operates with a typical forward voltage of 2.1V at a test current of 10mA, producing a millicandela rating of 6.3mcd. The digit height is 0.31 inches (8.00mm), with overall module dimensions of 0.512 inches H x 0.866 inches W x 0.197 inches D (13.00mm x 22.00mm x 5.00mm). The LB-303MK is housed in a 12-DIP package with a 0.362 inch (9.20mm) pin pitch. This display module is well-suited for applications in industrial control, instrumentation, and consumer electronics requiring clear numeric or alphanumeric readouts.
Additional Information
Series: LB-303AKRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 12-DIP (0.362"", 9.20mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.512"" H x 0.866"" W x 0.197"" D (13.00mm x 22.00mm x 5.00mm) |
| Number of Characters | 3 |
| Millicandela Rating | 6.3mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.31"" (8.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 10mA |
| Wavelength - Peak | 563nm |
| Power Dissipation (Max) | 1.44W |
Request a Quote
Clients Also Buy
LB-303MA
DISPLAY 7SEG 0.31"" TRP GRN 12DIP

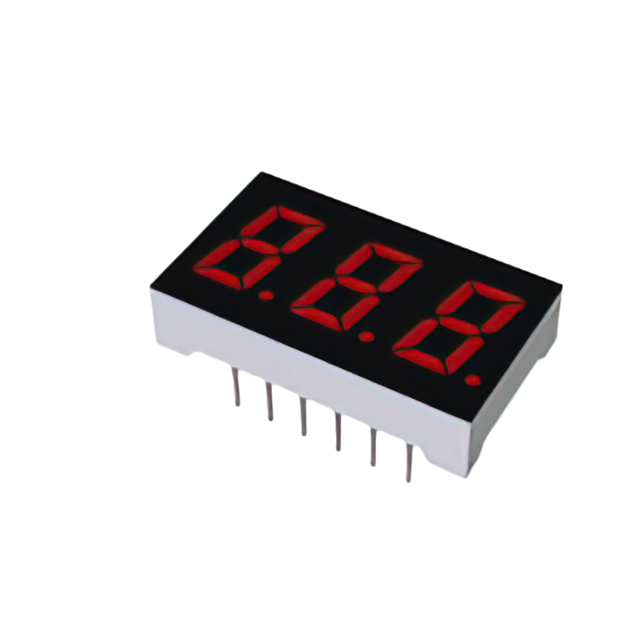

LB-303VA
