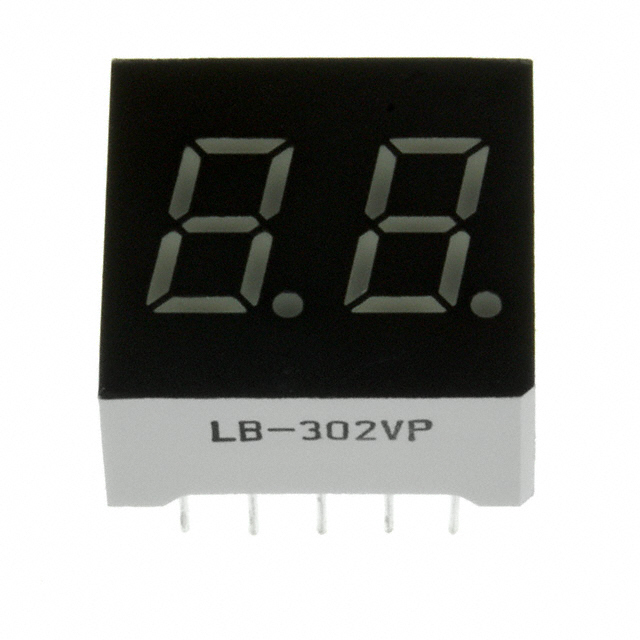

LB-302VF
DISPLAY 7-SEG 0.3"" DBL RED 10DIPManufacturer: Rohm Semiconductor
Categories: LED Character and Numeric
Quality Control: Learn More
The Rohm Semiconductor LB-302VF is a dual-digit, red 7-segment display module. This component features a 0.30-inch digit height and operates with a typical forward voltage of 2V and a test current of 10mA, achieving a millicandela rating of 6.3mcd. The display utilizes a common anode configuration. Its physical dimensions are 0.591 inches high by 0.610 inches wide by 0.283 inches deep (15.00mm x 15.50mm x 7.20mm). The component is housed in a 10-DIP package with a 0.400-inch pin spacing. This display is suitable for applications in industrial control, test and measurement equipment, and consumer electronics where clear numeric indication is required. The maximum power dissipation is rated at 50mW.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.400"", 10.16mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.591"" H x 0.610"" W x 0.283"" D (15.00mm x 15.50mm x 7.20mm) |
| Number of Characters | 2 |
| Millicandela Rating | 6.3mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.30"" (7.62mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 10mA |
| Wavelength - Peak | 650nm |
| Power Dissipation (Max) | 50mW |
