LAP-601DL
HIGH BRIGHTNESS NUMERIC LED DISPManufacturer: Rohm Semiconductor
Categories: LED Character and Numeric
Quality Control: Learn More

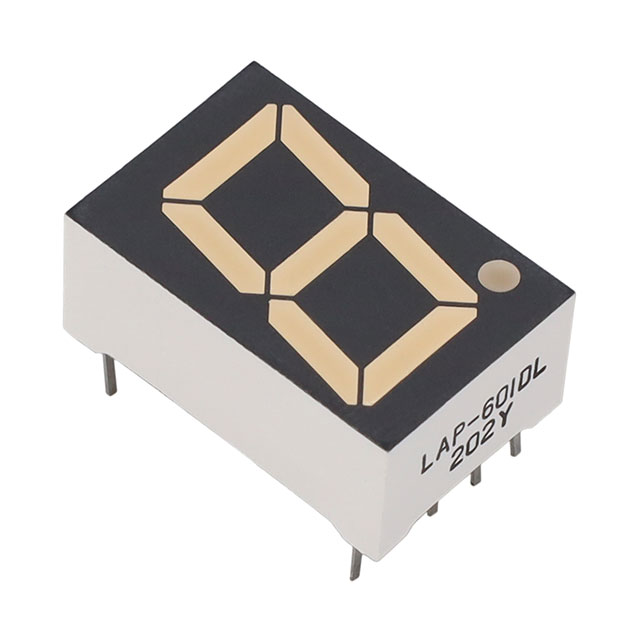

Rohm Semiconductor LAP-601DL is a single-digit, 7-segment numeric display from the L series. This orange LED component features a common cathode configuration and a digit/alpha size of 0.57 inches (14.60mm). It operates with a typical forward voltage of 1.9V and a test current of 10mA, achieving a millicandela rating of 250mcd. The display module's dimensions are 0.748 inches high by 0.492 inches wide by 0.315 inches deep (19.00mm x 12.50mm x 8.00mm). Encased in a 10-DIP (0.600", 15.24mm) package, this RoHS compliant component is suitable for applications in industrial automation, consumer electronics, and automotive instrumentation. The maximum power dissipation is 448mW.
Additional Information
Series: LRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Orange |
| Display Type | 7-Segment |
| Size / Dimension | 0.748"" H x 0.492"" W x 0.315"" D (19.00mm x 12.50mm x 8.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 250mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.57"" (14.60mm) |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Current - Test | 10mA |
| Wavelength - Peak | 605nm |
| Power Dissipation (Max) | 448mW |
