LA-301XL
DISPLAY 7SEG 0.31"" SGL YLW 10DIPManufacturer: Rohm Semiconductor
Categories: LED Character and Numeric
Quality Control: Learn More

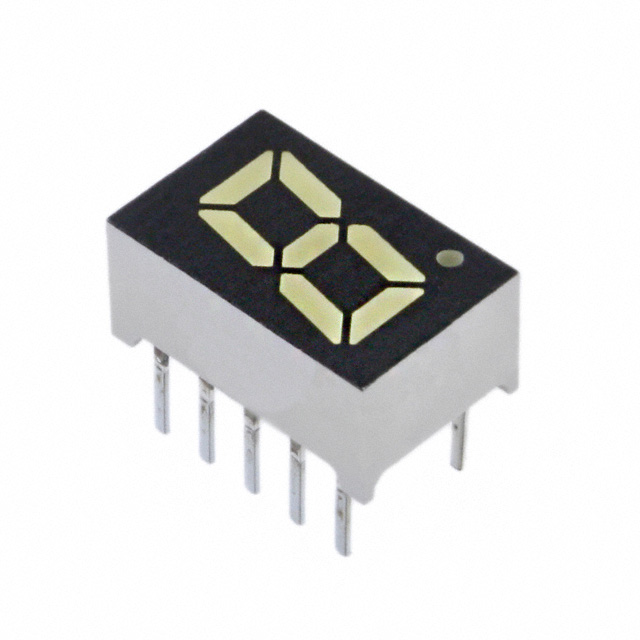

Rohm Semiconductor LA-301XL is a single-digit, 7-segment alphanumeric display module featuring a bright yellow LED with a character height of 0.31 inches (8.00mm). This component utilizes a common cathode configuration and operates with a typical forward voltage of 2.05V at a test current of 10mA, yielding a luminous intensity of 90mcd. The display's dimensions are 0.433 inches (11.00mm) in height, 0.276 inches (7.00mm) in width, and 0.197 inches (5.00mm) in depth. It is housed in a 10-DIP package with a pin pitch of 0.209 inches (5.30mm). The maximum power dissipation is rated at 65mW. This display is commonly found in industrial control equipment, instrumentation, and general electronic displays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.209"", 5.30mm) |
| Color | Yellow |
| Display Type | 7-Segment |
| Size / Dimension | 0.433"" H x 0.276"" W x 0.197"" D (11.00mm x 7.00mm x 5.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 90mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.31"" (8.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Current - Test | 10mA |
| Wavelength - Peak | 589nm |
| Power Dissipation (Max) | 65mW |
