LA-301BL
DISPLAY 7SEG 0.31"" SGL BLU 10DIPManufacturer: Rohm Semiconductor
Categories: LED Character and Numeric
Quality Control: Learn More

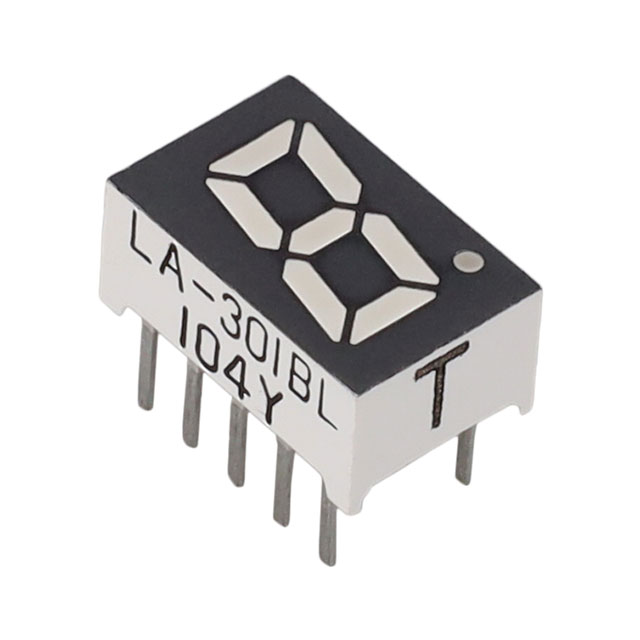

Rohm Semiconductor LA-301 B/L series 7-segment display module. This single-digit, blue LED display features a 0.31-inch character height and a common cathode configuration. It operates with a typical forward voltage of 3.6V and a test current of 10mA, producing a luminous intensity of 56mcd. The component has a peak wavelength of 470nm and a maximum power dissipation of 336mW. Its dimensions are 0.433 inches high by 0.276 inches wide by 0.197 inches deep (11.00mm x 7.00mm x 5.00mm). The device is housed in a 10-DIP package with a 0.209-inch (5.30mm) pin pitch. This component is suitable for applications in consumer electronics, industrial control, and instrumentation.
Additional Information
Series: LA-301 B/LRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.209"", 5.30mm) |
| Color | Blue |
| Display Type | 7-Segment |
| Size / Dimension | 0.433"" H x 0.276"" W x 0.197"" D (11.00mm x 7.00mm x 5.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 56mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.31"" (8.00mm) |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Current - Test | 10mA |
| Wavelength - Peak | 470nm |
| Power Dissipation (Max) | 336mW |
