LA-301BB
DISPLAY 7SEG 0.31"" SGL BLU 10DIPManufacturer: Rohm Semiconductor
Categories: LED Character and Numeric
Quality Control: Learn More

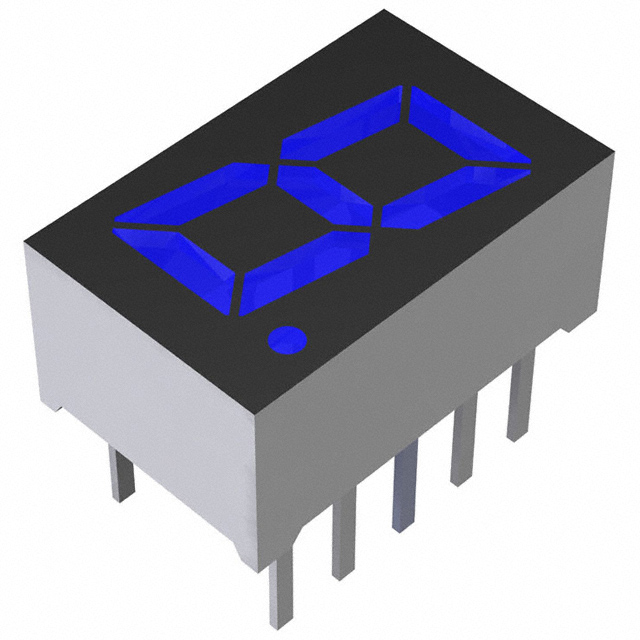

Rohm Semiconductor LA-301BB is a single-digit, 7-segment display module featuring a vibrant blue LED. This common anode component operates with a typical forward voltage of 3.6V and a test current of 10mA, achieving a luminance of 56mcd. The character height is 0.31 inches (8.00mm), with overall dimensions of 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm). The display is housed in a 10-DIP package with a 0.209" (5.30mm) lead pitch. With a maximum power dissipation of 42mW, this display is suitable for applications in instrumentation, industrial control, and consumer electronics where clear numeric indication is required. The peak wavelength of the blue emission is 470nm. This component is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: Not For New DesignsPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 10-DIP (0.209"", 5.30mm) |
| Color | Blue |
| Display Type | 7-Segment |
| Size / Dimension | 0.433"" H x 0.276"" W x 0.197"" D (11.00mm x 7.00mm x 5.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 56mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.31"" (8.00mm) |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Current - Test | 10mA |
| Wavelength - Peak | 470nm |
| Power Dissipation (Max) | 42mW |
