RPM922-H11E2A
IC IRDA IR COMMUNICATION MODULEManufacturer: Rohm Semiconductor
Categories: IrDA Transceiver Modules
Quality Control: Learn More
Rohm Semiconductor's RPM922-H11E2A is a high-speed IrDA transceiver module designed for serial infrared communication. This component supports the SIR (Standard Infrared) protocol at data rates up to 115.2 kbs. The side-view orientation and compact 6.80mm x 2.29mm x 1.70mm footprint make it suitable for space-constrained applications. Featuring an idle current of typically 900 µA at 25°C and a link range of 20cm to 60cm in low-power mode, this module operates efficiently within a supply voltage range of 2.4 V to 3.6 V. The RPM922-H11E2A adheres to the IrDA 1.3 standard and is supplied in Tape & Reel packaging. This module finds application in industrial control systems, medical devices, and consumer electronics where short-range, wireless data transfer is required. The operating temperature range is -30°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Orientation | Side View |
| Operating Temperature | -30°C ~ 85°C |
| Size | 6.80mm x 2.29mm x 1.70mm |
| Data Rate | 115.2kbs (SIR) |
| Standards | IrDA 1.3 |
| Link Range, Low Power | 20cm, 60cm |
| Shutdown | - |
| Voltage - Supply | 2.4 V ~ 3.6 V |
| Idle Current, Typ @ 25°C | 900 µA |
Request a Quote
Clients Also Buy

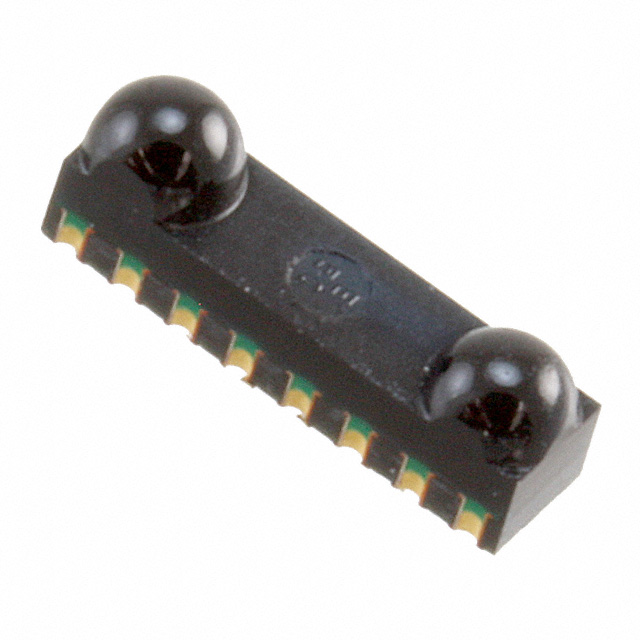

RPM871-E4A
