BM6203FS-E2

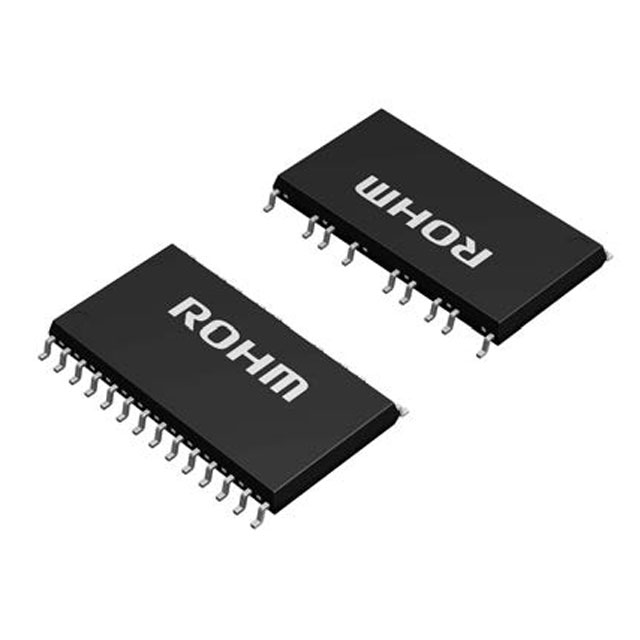

IC HALF BRIDGE DRVR 2.5A 54SSOPManufacturer: Rohm Semiconductor
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Rohm Semiconductor BM6203FS-E2 is a Half Bridge Driver designed for AC motor control applications. This component features a 2.5A continuous output current and a 4A peak output current, operating with a load voltage up to 400V. The device integrates a bootstrap circuit and status flag for enhanced functionality. Fault protection mechanisms, including current limiting, over-temperature shutdown, and undervoltage lockout (UVLO), are built-in for robust operation. The BM6203FS-E2 utilizes Power MOSFET technology and is supplied in a 54-SSOP package, suitable for surface mount applications. Its operating temperature range is -20°C to 125°C (TJ). This driver is ideal for applications requiring efficient control of inductive loads in demanding industrial environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 54-SOP (0.449"", 11.40mm Width), 23 Leads |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 13.5V ~ 16.5V |
| Rds On (Typ) | 1.7Ohm |
| Applications | AC Motors |
| Current - Output / Channel | 2.5A |
| Current - Peak Output | 4A |
| Technology | Power MOSFET |
| Voltage - Load | 400V (Max) |
| Supplier Device Package | SSOP-A54_23 |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive |
