BM6202FS-E2

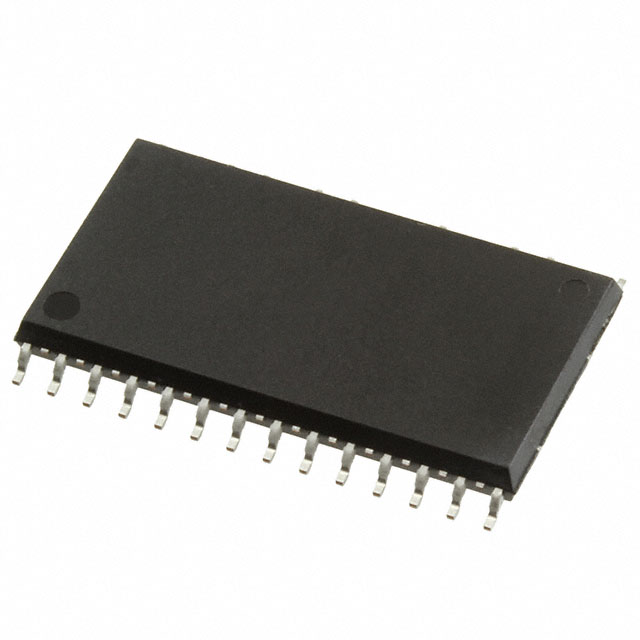

IC HALF BRIDGE DRVR 1.5A 23SSOPManufacturer: Rohm Semiconductor
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Rohm Semiconductor's BM6202FS-E2 is a half-bridge driver designed for AC motor control applications. This 23-SSOP package component provides a 1.5A continuous output current and a 2.5A peak output current, utilizing Power MOSFET technology. Key features include a bootstrap circuit for high-side driving, a status flag for monitoring, and robust fault protection mechanisms such as current limiting, over-temperature shutdown, and undervoltage lockout (UVLO). The device operates with a supply voltage range of 13.5V to 16.5V and supports load voltages up to 400V. Its surface mount configuration and 2.7 Ohm typical RDS(on) make it suitable for demanding applications in industrial automation and appliance control. The BM6202FS-E2 is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-ESOP (0.449"", 11.40mm Width), 23 Leads |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 13.5V ~ 16.5V |
| Rds On (Typ) | 2.7Ohm |
| Applications | AC Motors |
| Current - Output / Channel | 1.5A |
| Current - Peak Output | 2.5A |
| Technology | Power MOSFET |
| Voltage - Load | 400V (Max) |
| Supplier Device Package | 23-SSOP |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive |
