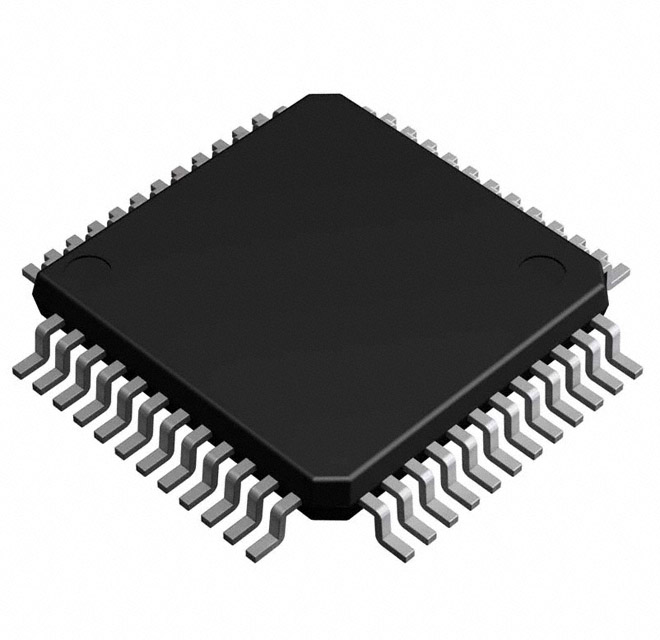

BD7790KVT-E2
IC HALF BRIDGE DRIVER 3A 48TQFPManufacturer: Rohm Semiconductor
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The Rohm Semiconductor BD7790KVT-E2 is a high-side/low-side driver for DC motor control and general-purpose applications. This electronic component features a half-bridge output configuration, capable of delivering up to 3A per channel. Designed with Power MOSFET technology, it operates within a voltage range of 4V to 5.5V for both load and supply. The device includes over-temperature fault protection for enhanced reliability. Its interface is logic-compatible, and it is packaged in a 48-TQFP (7x7) surface-mount format, supplied on tape and reel. The BD7790KVT-E2 is suitable for applications requiring efficient control of inductive loads.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -30°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (15) |
| Voltage - Supply | 4V ~ 5.5V |
| Rds On (Typ) | - |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 3A |
| Current - Peak Output | - |
| Technology | Power MOSFET |
| Voltage - Load | 4V ~ 5.5V |
| Supplier Device Package | 48-TQFP (7x7) |
| Fault Protection | Over Temperature |
| Load Type | Inductive |
