BD6884GUW-E2
IC HALF BRIDGE DRVR VBGA035W040Manufacturer: Rohm Semiconductor
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Rohm Semiconductor's BD6884GUW-E2 is a half-bridge driver IC designed for DC motor control and general-purpose applications. This component features integrated fault protection, including over-temperature and undervoltage lockout (UVLO) capabilities. The BD6884GUW-E2 operates with a load voltage and supply voltage range of 2.5V to 5.5V, delivering 500mA of output current per channel. Its low on-resistance of 1.5Ohm (typical) minimizes power dissipation. The device is housed in a 35-VFBGA package, specifically the VBGA035W040, and is supplied on tape and reel. This half-bridge driver is suitable for applications requiring precise control of inductive loads, commonly found in automotive systems and industrial automation. The interface is logic-level compatible, simplifying integration into existing designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |

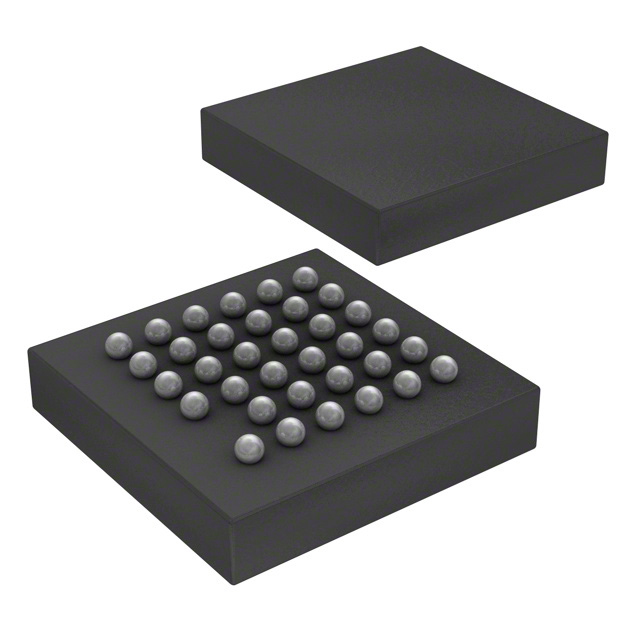

| Package / Case | 35-VFBGA |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -25°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 2.5V ~ 5.5V |
| Rds On (Typ) | 1.5Ohm |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 500mA |
| Current - Peak Output | - |
| Technology | - |
| Voltage - Load | 2.5V ~ 5.5V |
| Supplier Device Package | VBGA035W040 |
| Fault Protection | Over Temperature, UVLO |
| Load Type | Inductive |
