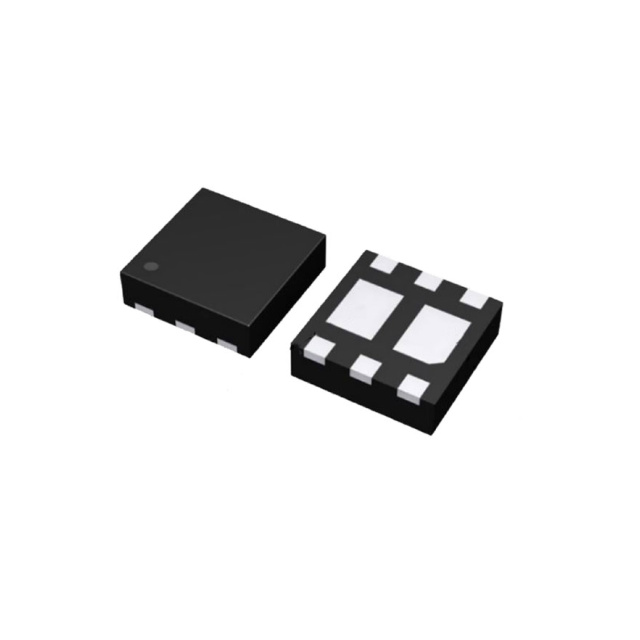

UT6K3TCR1
MOSFET 2N-CH 30V 5.5A HUML2020L8Manufacturer: Rohm Semiconductor
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 30V 5.5A (Ta) 2W (Ta) Surface Mount HUML2020L8
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerUDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2W (Ta) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 5.5A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 450pF @ 15V |
| Rds On (Max) @ Id, Vgs | 42mOhm @ 5A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 4nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.5V @ 1mA |
| Supplier Device Package | HUML2020L8 |
Request a Quote
