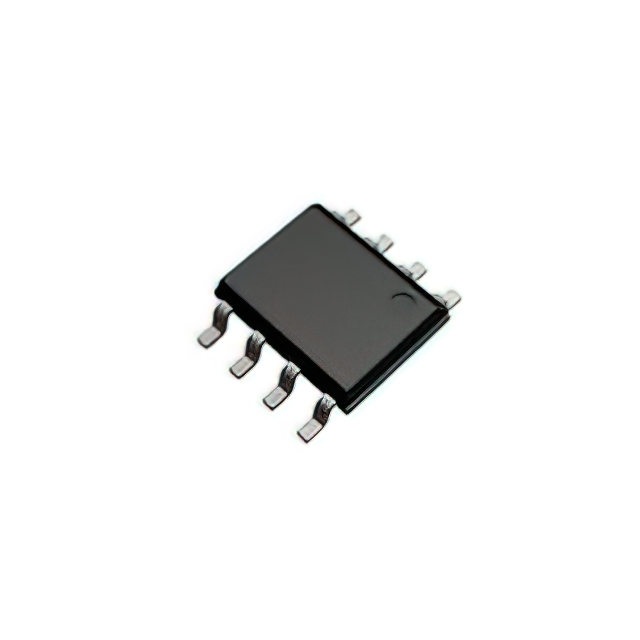

SH8MC4TB1
60V 3.5A/4A, DUAL NCH+PCH, SOP8,Manufacturer: Rohm Semiconductor
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 60V 3.5A (Ta), 4A (Ta) 2W (Ta) Surface Mount 8-SOP
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2W (Ta) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta), 4A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 135pF @ 30V, 850pF @ 30V |
| Rds On (Max) @ Id, Vgs | 95mOhm @ 3.5A, 10V, 96mOhm @ 4A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 3.1nC @ 10V, 17.3nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | 8-SOP |
| Grade | - |
| Qualification | - |
