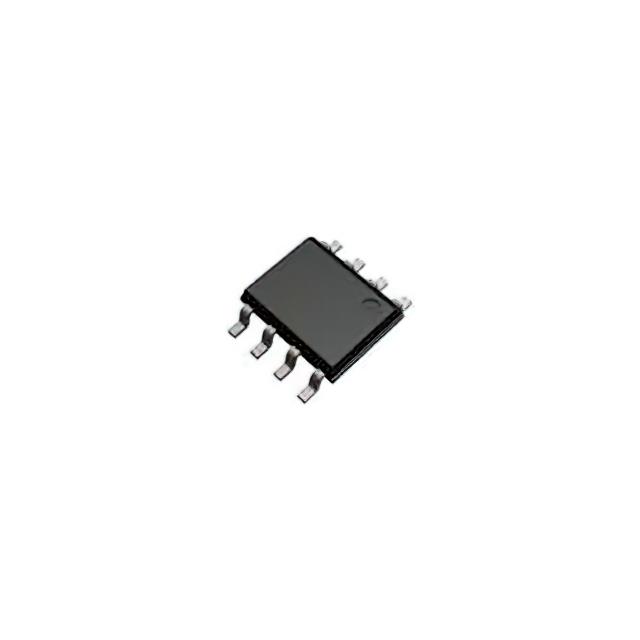

SH8MB4TB1
40V 4.5A/5.5A, DUAL NCH+PCH, SOPManufacturer: Rohm Semiconductor
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 40V 4.5A (Ta), 5.5A (Ta) 2W (Ta) Surface Mount 8-SOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2W (Ta) |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta), 5.5A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 150pF @ 20V, 920pF @ 20V |
| Rds On (Max) @ Id, Vgs | 55mOhm @ 4.5A, 10V, 46mOhm @ 5.5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 3.5nC @ 10V, 17.2nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | 8-SOP |
| Grade | - |
| Qualification | - |
