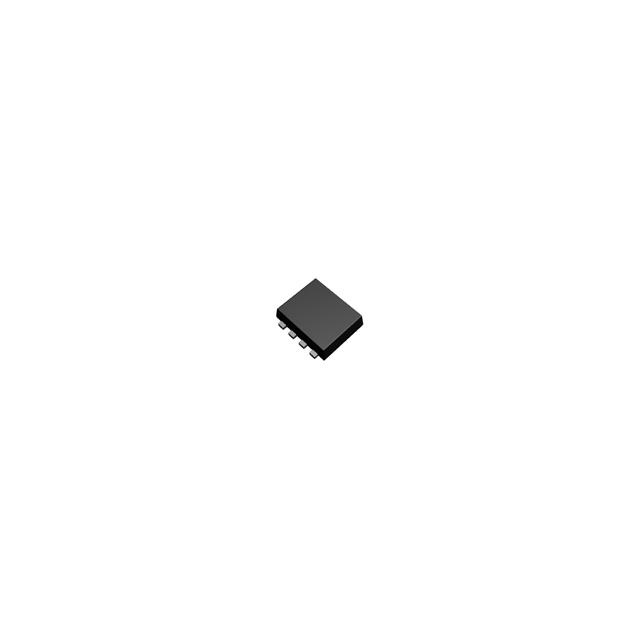

QH8KE6TCR
100V 4A, DUAL NCH+NCH, TSMT8Manufacturer: Rohm Semiconductor
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 100V 4A (Ta) 1.1W (Ta) Surface Mount TSMT8
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.1W (Ta) |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 305pF @ 50V |
| Rds On (Max) @ Id, Vgs | 56mOhm @ 4A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 6.7nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | TSMT8 |
| Grade | - |
| Qualification | - |
