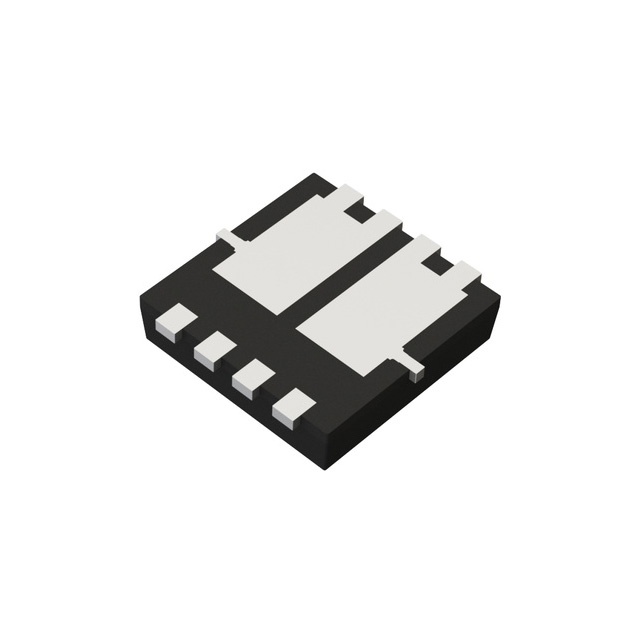

HT8KE6TB1
MOSFET 2N-CH 100V 4.5A 8HSMTManufacturer: Rohm Semiconductor
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 100V 4.5A (Ta), 13A (Tc) 2W (Ta), 14W (Tc) Surface Mount 8-HSMT (3.2x3)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2W (Ta), 14W (Tc) |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta), 13A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 305pF @ 50V |
| Rds On (Max) @ Id, Vgs | 57mOhm @ 4.5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 6.7nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | 8-HSMT (3.2x3) |
